Tekstilde Yaygın Olarak Kullanılan Poliüretan Yuvarlak Kayışı Sürme, Yüzey Kaba

  • Driving Polyurethane Round Belt Widely Used In Textile , Surface Rough
  • Driving Polyurethane Round Belt Widely Used In Textile , Surface Rough
  • Driving Polyurethane Round Belt Widely Used In Textile , Surface Rough
  • Driving Polyurethane Round Belt Widely Used In Textile , Surface Rough
Place of Origin China
Marka adı jiuna
Sertifika ROHS
Model Number Diameter 2mm-20mm
Minimum Order Quantity 10 rolls
Packaging Details Inner packing is plastic film .outer packing is carton
Delivery Time Within 5 working days After receipt of your deposit
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 100.000 meters per Month

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
sertlik 85A-90A renk Yeşil
germe oranı %1,5-3 çekme oranı 0,7 lbs-69 lbs
malzeme PU uzunluk 400m/rulo 300m/rulo 200m/rulo 100m/rulo 30m/rulo
GTİP Kodu 3926909090 Üretim kapasitesi Uzun Vadeli Tedarik
Vurgulamak

pu yuvarlak kayış

,

yeşil yuvarlak kayış

,

kaba yuvarlak poliüretan tahrik kayışları
Mesaj bırakın
Ürün Açıklaması

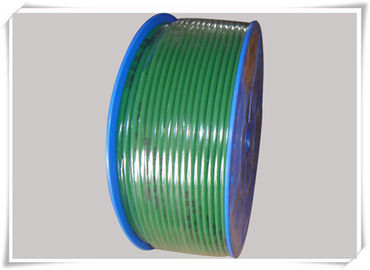

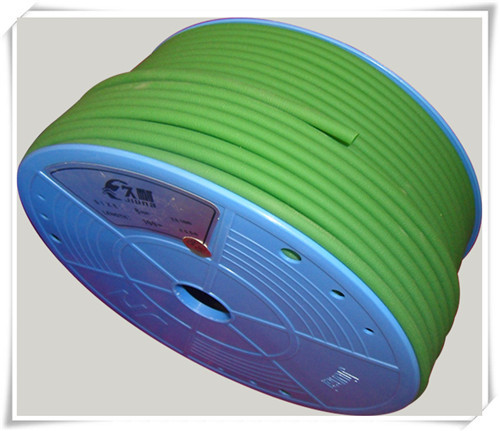

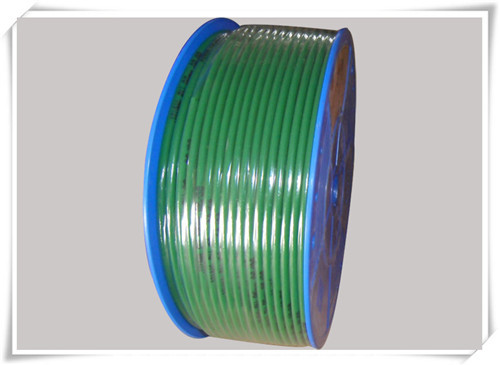

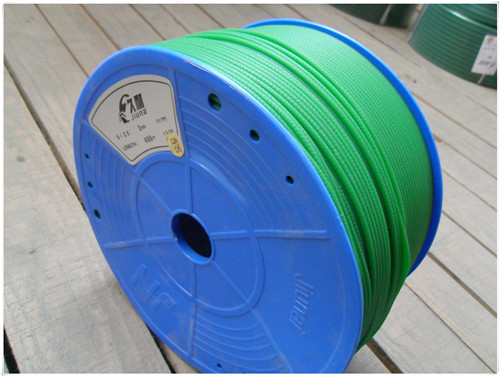

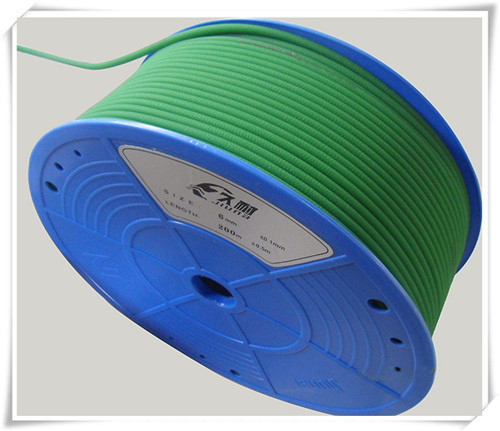

Driving Polyurethane Round Belt Widely used in textile , surface rough



Detailed Product Description

Industrial 12mm Polyurethane Round Belt Orange or Green for Packing Machine

Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. is from 2mm to20mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.
PU Round belt with reinforcement

polyurethane Round Belts Feature:

1.With excellent bend resistant

2.abrasion/wear resistant

3.easily connected

4.it's not easy to be broken at low temperature

5.fuel and oil resistant

6.anti static

polyurethane round belt Application :

1.Widely used in textile

2. printing and packing machine

3. food & beverage processing

4. wood processing

 5.paper processing

 6.electronic

 7.post service

 8.tobacco transmission line

 9.Wall floor tile conveying industrial line

10.Ceramic industry line or polishing line

Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

Dia.

(mm)

 In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)
2mm 0.79 20 1.5-3% 0.3 0.7 90 A 400
3mm 0.98 25 1.5-3% 0.7 1.6 90 A 400
4mm 1.38 35 1.5-3% 1.2 2.7 85 A  200
15mm 4.72 120 1.5-3% 17.7 39.0 85 A  30
18mm 5.71 145 1.5-3% 25.4 56.0 85 A  30
20mm 6.30 160 1.5-3% 31.3 69.0 85 A  30



Service commitment:

“Quality for keeping going ,Credit to win the world”
