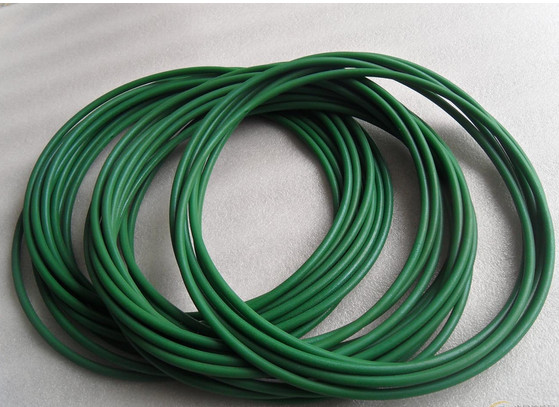

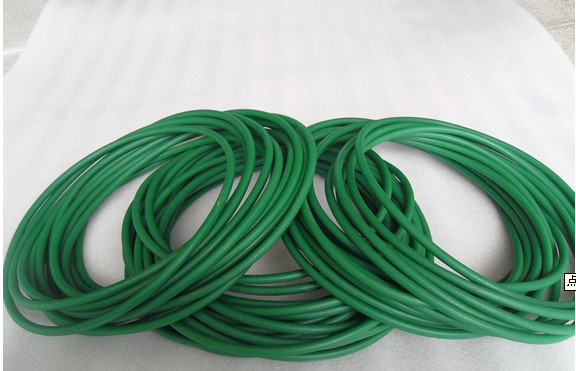

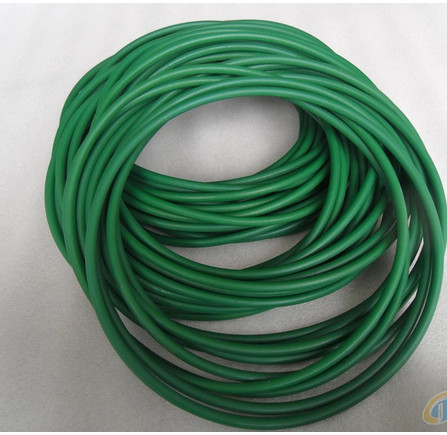

Green Polyurethane Round Belt In Roll Seamless Belt Paper Processin
Detailed Product Description
Industrial 12mm Polyurethane Round Belt Orange or Green for Packing Machine
Features:
1) made of PU material, easy to be joint at high heat.
2) Available to add nylon cord or steel cord
3) Tolerant temperturer: -35℃--80℃
4) High capacity on wear-resistance, flexibity. Wildly applied in varies industries such as textile, package, printing, machinery, electricity electronics, glass,ceramics, ESPECIALLY in ceramic/marble, they are welcome in the polishing& glazing .
5) Round belt:
a: diameter: 2mm--30mm
b: surface: vivid color with glossy surface; neat granule spread fairly for rough surface type.
polyurethane Round Belts Feature:
1. With excellent bend resistant
2. abrasion/wear resistant
3. easily connected
4. it's not easy to be broken at low temperature
5. fuel and oil resistant
6. anti static
polyurethane round belt Application :
1. Widely used in textile
2. printing and packing machine
3. food & beverage processing
4. wood processing
5. paper processing
6. electronic
7. post service
8. tobacco transmission line
9. Wall floor tile conveying industrial line
10.Ceramic industry line or polishing line
Products introduction:
Urethane round belts are elastomeric belts for power transmission application.
Having most metric sizes (2mm to 20mm) and standard O-ring sizes.
Polyether and Polyurethane round belts have best resilience of any elastic material.
Polyester product has good wear resistance, its wear resistance is 3.5 times of common plastic and rubber.
|
Items NO.Φ |
Least radius of gyration |
Stretching rate |
Maximum tensile rate |
Hardness |
Length of rolled |
||
|
DIA(mm) |
In |
mm |
% |
Kg |
Lbs |
Shore( A) |
Length of rolled |
|
2mm |
0.79 |
20 |
1.5-3% |
0.3 |
0.7 |
95 |
400 |
|
2.5mm |
0.87 |
22 |
1.5-3% |
0.4 |
0.9 |
95 |
400 |
|
3mm |
0.98 |
25 |
1.5-3% |
0.7 |
1.6 |
90 |
400 |
|
3.5mm |
1.18 |
30 |
1.5-3% |
0.95 |
2.1 |
90 |
400 |
|
4mm |
1.38 |
35 |
1.5-3% |
1.2 |
2.7 |
90 |
200 |
|
5mm |
1.57 |
40 |
1.5-3% |
2.0 |
4.3 |
90 |
100 |
|
6mm |
1.97 |
50 |
1.5-3% |
3.2 |
7.0 |
90 |
100 |
|
7mm |
2.17 |
55 |
1.5-3% |
4.1 |
9.0 |
90 |
100 |
|
8mm |
2.56 |
65 |
1.5-3% |
5.0 |
11.0 |
90 |
100 |
|
9mm |
2.95 |
75 |
1.5-3% |
6.8 |
15.0 |
90 |
50 |
|
10mm |
2.95 |
75 |
1.5-3% |
7.7 |
17.0 |
90 |
50 |
|
12mm |
3.94 |
100 |
1.5-3% |
12.2 |
27.0 |
90 |
30 |
|
15mm |
4.72 |
120 |
1.5-3% |
17.7 |
39.0 |
90 |
30 |
|
18mm |
5.71 |
145 |
1.5-3% |
25.4 |
56.0 |
90 |
30 |
|
20mm |
6.30 |
160 |
1.5-3% |
31.3 |
69.0 |
90 |
30 |
