| Main function: | Transmission Belt | Hardness: | 90 shore A |
|---|---|---|---|
| Material: | PU | Length: | 30 meter /rolls |
| Test Method: | DIN standard | Type: | V-belt |
| Vurgulamak: | yeşil yuvarlak kemer,PU yuvarlak kayış |
||

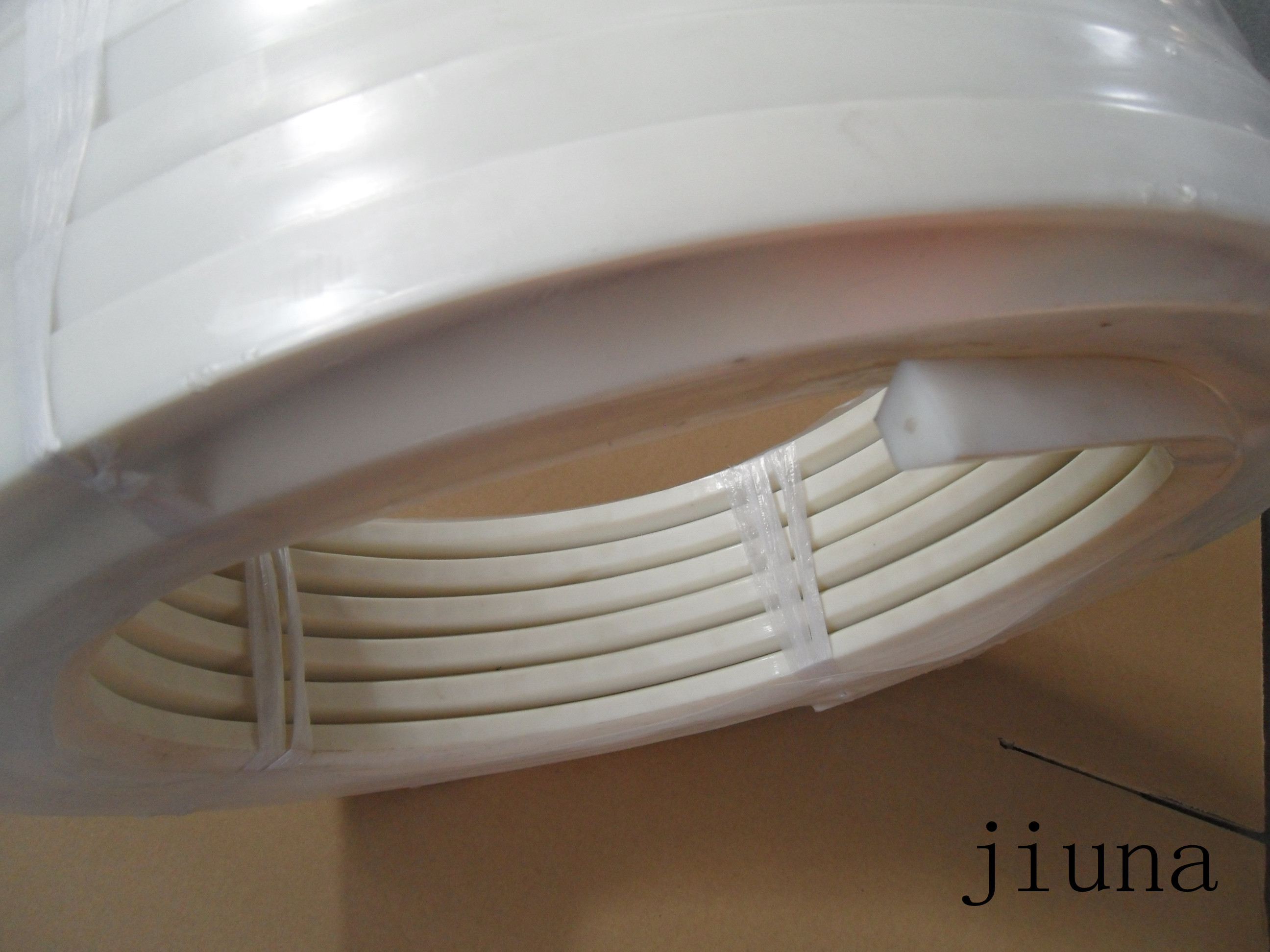

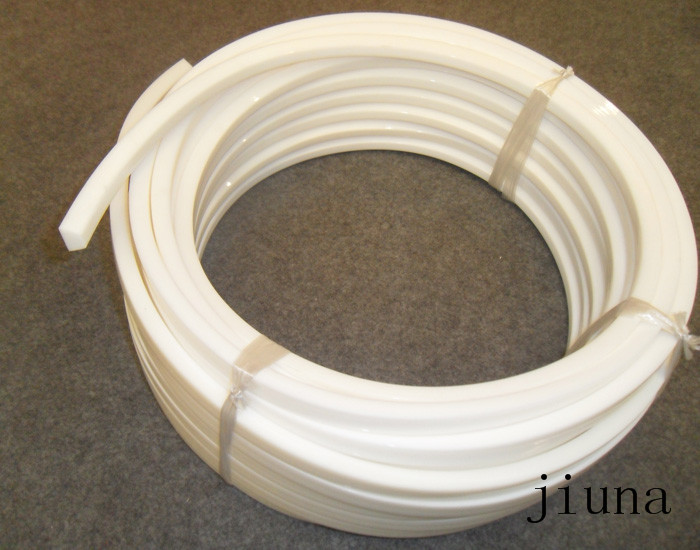

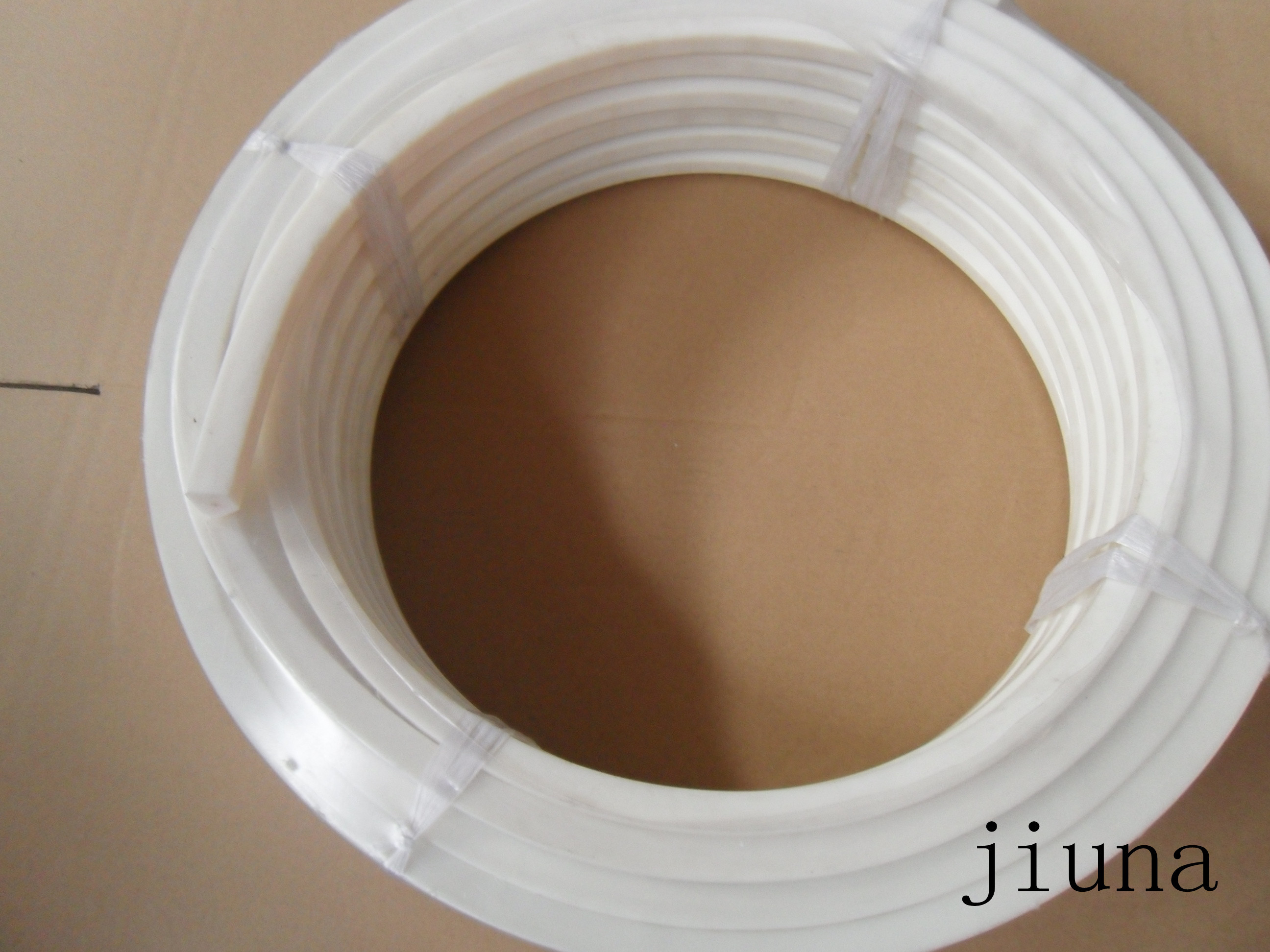

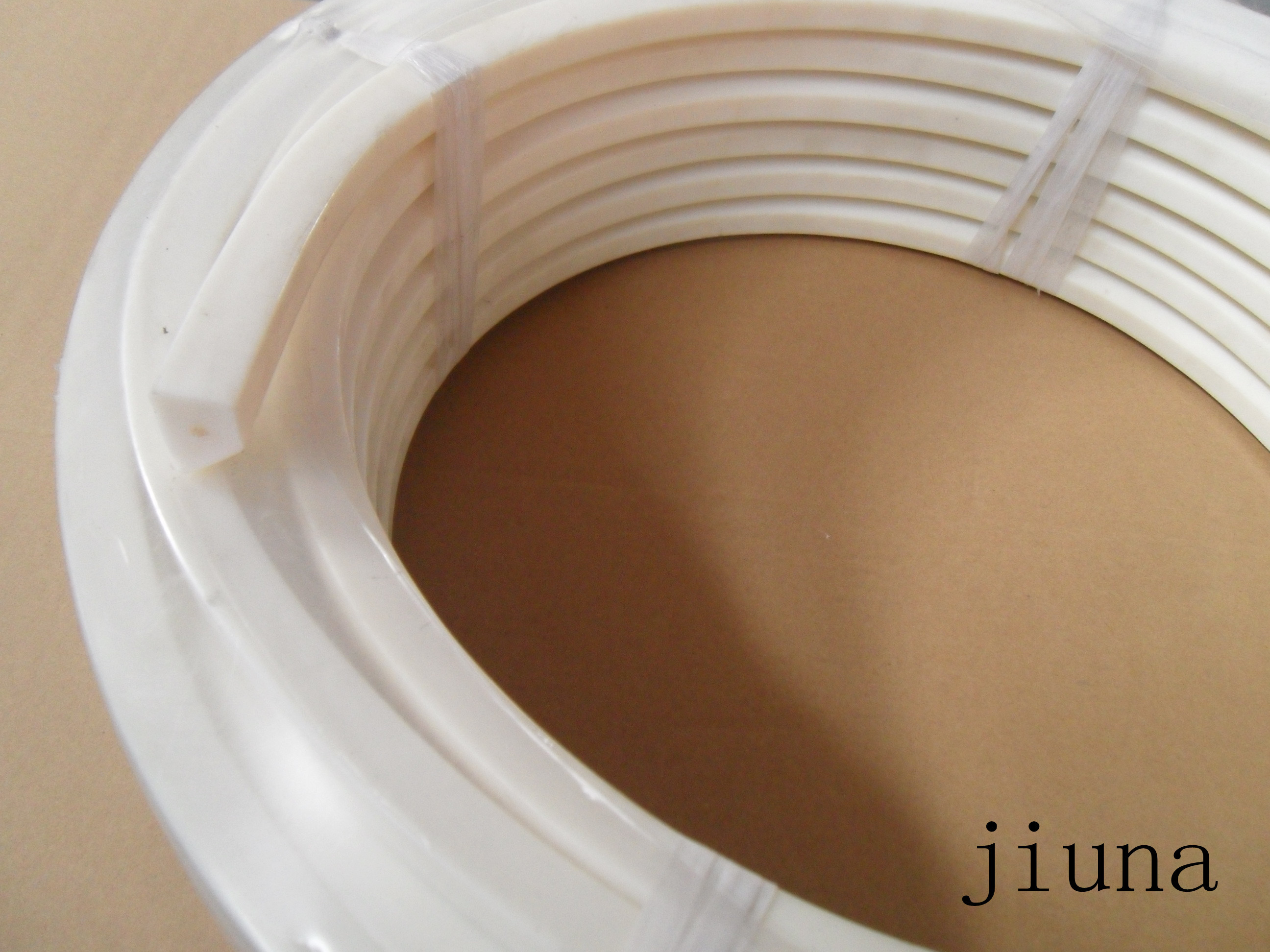

High Tensile White Polyurethane V Belt / PU Sandwich Belt For Textile
PU Flat Transmission Belt Low Compression Set industry machines
PU V-Belt Application :
Widely used in textile
printing and packing machine
paper processing
electronic
Product Technical Parameters :
Specification | X(mm) | H(mm) | Z(mm) | M/rolls | reinforced | arabesquitic |
A | 13 | 8 | 3.5 | 30 | ·nylon | · |
B | 17 | 11 | 3.5 | 30 | ·nylon | · |
C | 22 | 14 | 3.5 | 30 | ·nylon | · |
D | 32 | 19 | 3.5 | 30 | ·nylon | · |
M | 8 | 4 |
| 50 | nylon |
|
Z | 10 | 5 | 3.5 | 50 | ·nylon | · |
Characteristics for PU V-section belt
excellent elasticity and damping characteristics
High tensile strength
With smooth surface v-belts
Color :red ,white
Hardness 90 shore A
Available with or without reinforced cord .
Replacement for conventional rubber V-belts , but more wear-resisting and can welding.
Products introduction
In addition , We are able to tailor Round and V-belts of different lengths and diameters - within a few
days and with high quality.
