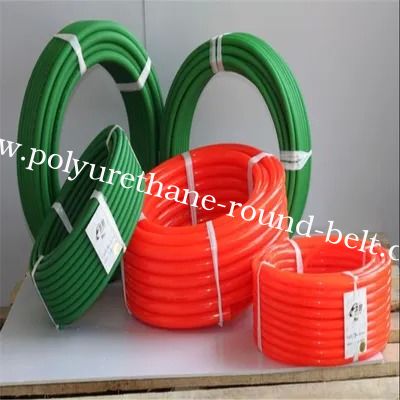

Oil-Resistant Polyurethane Round Belt with Shore A 90 Hardness and Diameter 2-20mm for Drive Transmission
| Min sipariş miktarı | 1.000 |
|---|---|
| Fiyat | 0.5 |
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Model No. | JN20169 | Tip | PU Yuvarlak Kemer |
|---|---|---|---|
| Malzeme | pu | Malzemenin İçinde | pu |
| Yüzey | Yumuşak ya da Kaba | Gerilme mukavemeti | 55N/mm2 |
| Çap | 2 ~ 20 mm | Sertlik | 85 a ~ 90 a |
| germe oranı | %1,5-3 | Maksimum gerilme oranı | Kg (çapa göre değişir) |
| En az yarıçap | 20 ~ 160 mm | Rulo uzunluğu | 30 ~ 400 m |
| Gözyaşı gücü | Yüksek | Sıkıştırma seti | Düşük |
| Darbe direnci | Yüksek | ||
| Vurgulamak | Oil-Resistant Polyurethane Round Belt,Shore A 90 Polyurethane V Belt,Diameter 2-20mm PU Round Belt |
||
Ürün Açıklaması
Abrasion-Resistant Polyurethane Round Belt
Our premium polyurethane round belts are designed for transmission applications in industrial machinery and product conveyance systems. These belts feature poly cord reinforcement and are available with either smooth or rough surfaces to suit various operational requirements.
Product Features
- Exceptional abrasion resistance for extended service life
- High tensile and tear strength for demanding applications
- Resistant to oils, fuels, and oxygen exposure
- Excellent weatherability and impact resistance
- Minimal compression set for consistent performance
- Available in multiple diameters from 2mm to 20mm
- Compatible with various connection methods including hot press welding
Technical Specifications
| Diameter | Min. Bend Radius | Elongation | Max. Tensile | Hardness | Roll Length |
|---|---|---|---|---|---|
| 2mm (0.79") | 20mm | 1.5-3% | 0.3kg (0.7lbs) | 95A | 400m |
| 2.5mm (0.87") | 22mm | 1.5-3% | 0.4kg (0.9lbs) | 95A | 400m |
| 3mm (0.98") | 25mm | 1.5-3% | 0.7kg (1.6lbs) | 90A | 400m |
| 3.5mm (1.18") | 30mm | 1.5-3% | 0.95kg (2.1lbs) | 90A | 400m |
| 4mm (1.38") | 35mm | 1.5-3% | 1.2kg (2.7lbs) | 90A | 200m |
| 5mm (1.57") | 40mm | 1.5-3% | 2kg (4.3lbs) | 90A | 100m |
| 6mm (1.97") | 50mm | 1.5-3% | 3.2kg (7lbs) | 90A | 100m |
| 7mm (2.17") | 55mm | 1.5-3% | 4.1kg (9lbs) | 90A | 100m |
| 8mm (2.56") | 65mm | 1.5-3% | 5kg (11lbs) | 90A | 100m |
| 9mm (2.95") | 75mm | 1.5-3% | 6.8kg (15lbs) | 90A | 50m |
| 10mm (3.94") | 100mm | 1.5-3% | 7.7kg (17lbs) | 90A | 50m |
| 12mm (3.94") | 100mm | 1.5-3% | 12.2kg (27lbs) | 90A | 30m |
| 15mm (4.72") | 120mm | 1.5-3% | 17.7kg (39lbs) | 90A | 30m |
| 18mm (5.71") | 145mm | 1.5-3% | 25.4kg (56lbs) | 90A | 30m |
| 20mm (6.3") | 160mm | 1.5-3% | 31.3kg (69lbs) | 90A | 30m |
Common Applications
Newspaper conveying
Packaging machinery
Ceramic processing
Tile production
Woodworking equipment
Textile machinery
Paper industry
Food processing
Grading machines
