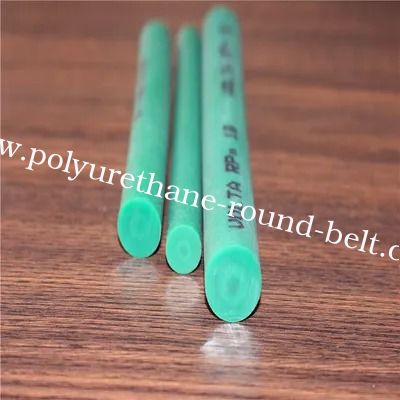

Polyurethane Round Belt PU Round Belt with Diameter 2-20mm Shore A 90 and Acid Alkali Resistance for Drive Transmission
| Min sipariş miktarı | 1.000 |
|---|---|
| Fiyat | 0.5 |
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Model No. | Dia 2mm-20mm | Tip | PU Yuvarlak Kemer |
|---|---|---|---|
| Malzeme | pu | Malzemenin İçinde | pu |
| Yüzey | Yumuşak ya da Kaba | Gerilme mukavemeti | 55N/mm2 |
| Çap | 2 ~ 20 mm | Sertlik | Kıyı (A) 85 ~ 90 |
| germe oranı | %1,5-3 | Rulo uzunluğu | 30m ~ 400m |
| En az yarıçap | 20mm ~ 160mm | Maksimum gerilme | 0.3kg ~ 31.3kg |
| Yağ direnci | Evet | Asit direnci | Evet |
| Isı direnci | Evet | ||
| Vurgulamak | Diameter 2-20mm Polyurethane Round Belt,Shore A 90 PU Round Belt,Acid Alkali Resistant Polyurethane V Belt |
||
Ürün Açıklaması
Driving Polyurethane Round Belt Supplier
We provide a comprehensive range of Polyester and Polyurethane Round belts designed for industrial transmission applications. Our belts are engineered for transporting various products across multiple industries, from transport and conveyor systems to glass and tile handling.
Product Features
- Outstanding abrasion resistance
- High tensile and tear strength
- Resistance to oils, fuels, and oxygen
- Excellent weatherability and high impact resistance
- Low compression set
- Available with smooth or rough surfaces
- Reinforced with polyester, nylon, or fibers
- Can be welded into O-rings
Available Accessories
We supply complete connecting tools and accessories including clamps, electric irons, and knives. Connection methods include hotpress welding and overlap welding.
Applications
- Newspaper conveying systems
- Packing machines
- Ceramic and stoneware processing plants
- Floor and roof tiles conveying
- Wood working machinery
- Textile machines
- Paper industry machines
- Food grading and processing machines
Technical Specifications
| Items NO. Φ | Least Radius of Gyration | Stretching Rate | Maximum Tensile Rate | Hardness | Length of Roll | |
|---|---|---|---|---|---|---|
| DIA(mm) | In | mm | % | Kg | Lbs | Shore(A) | Roll(m) |
| 2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 | 400 |
| 2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95 | 400 |
| 3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
| 3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90 | 400 |
| 4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90 | 200 |
| 5mm | 1.57 | 40 | 1.5-3% | 2 | 4.3 | 90 | 100 |
| 6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7 | 90 | 100 |
| 7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9 | 90 | 100 |
| 8mm | 2.56 | 65 | 1.5-3% | 5 | 11 | 90 | 100 |
| 9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15 | 90 | 50 |
| 10mm | 3.94 | 100 | 1.5-3% | 7.7 | 17 | 90 | 50 |
| 12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27 | 90 | 30 |
| 15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39 | 90 | 30 |
| 18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56 | 90 | 30 |
| 20mm | 6.3 | 160 | 1.5-3% | 31.3 | 69 | 90 | 30 |
The elastic and flexible PU material (85A~90A) is particularly suitable for lead-in conveyors and vertical shafts.
