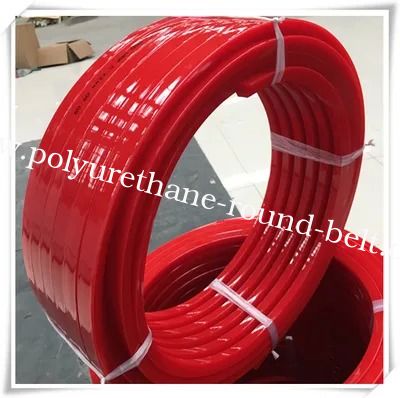

SGS ISO9001: 2008 Certified Polyurethane V Belt with Drive Transmission and 30M/Rolls
| Min sipariş miktarı | 1.000 |
|---|---|
| Fiyat | 1.2 |
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Sertlik | 85A-95A | Boyut | Özelleştirmek |
|---|---|---|---|
| Spesifikasyon | A, B, C. | Genişlik a | 13 mm |
| Yükseklik a | 17 mm | Sertlik A | 90A |
| Uzunluk a | 30m/rulo | Genişlik B | 17 mm |
| Yükseklik b | 22mm | Sertlik B | 90A |
| Uzunluk b | 30m/rulo | Genişlik c | 22mm |
| Yükseklik | 28 mm | Sertlik C | 90A |
| Uzunluk | 30m/rulo | ||
| Vurgulamak | SGS ISO9001: 2008 Certified Polyurethane V Belt,Drive Transmission PU V Belt,30M/Rolls Ridge Top V-Belt |
||
Ürün Açıklaması
Red PU Extruded Belt
Ceramic Industrial PU Ridge Top belt Polyurethane V Belt B-17/C-22 type for transmission.
Ridge Top V-Belt Features
- Very soft belt material with high elasticity
- Excellent adhesion properties
- Available with smooth and rough surface options
- Maintains flexibility at low temperatures
- Optional reinforcement available
- Standard color: orange
Applications
- Furniture manufacturing industry
- Printing line operations
- Bottle and can return systems with deposit refund
- Vertical shaft drive transport systems
- Linear track guiding profiles for welding applications
- Roller conveyor systems
Technical Specifications
| Type | X (mm) | H (mm) | Hardness (A) | M/rolls | Reinforced |
|---|---|---|---|---|---|
| A | 13 | 17 | 90 | 30 | · |
| B | 17 | 22 | 90 | 30 | · |
| C | 22 | 28 | 90 | 30 | · |
Product Overview
Ridge top V-belts are primarily used in the ceramic and tile industry. Our standard product range includes 2-component Ridge top V-belts that combine superior adhesion with high tensile strength. These belts can be reinforced with polyester for enhanced durability.
Quality for keeping going, Credit to win the world
