Green 85A rough Polyurethane Round Belt Packing Machine

  • Green 85A rough Polyurethane Round Belt Packing Machine
  • Green 85A rough Polyurethane Round Belt Packing Machine
  • Green 85A rough Polyurethane Round Belt Packing Machine
  • Green 85A rough Polyurethane Round Belt Packing Machine
Place of Origin china
Marka adı jiuna
Sertifika ROHS
Model Number Diameter 3mm-20mm
Minimum Order Quantity 10 rolls
Packaging Details Inner packing is plastic film .outer packing is carton
Delivery Time Within 5 working days After receipt of your deposit
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 100.000 meters per Month

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
hardness 85A color Dark Green
stretching rate 1.5-3% surface rough
material PU length 400m/roll 300m/roll 200m/roll 100m/roll 30m/roll
Vurgulamak

PU yuvarlak kayış

,

PU haddelenmiş kemer
Mesaj bırakın
Ürün Açıklaması

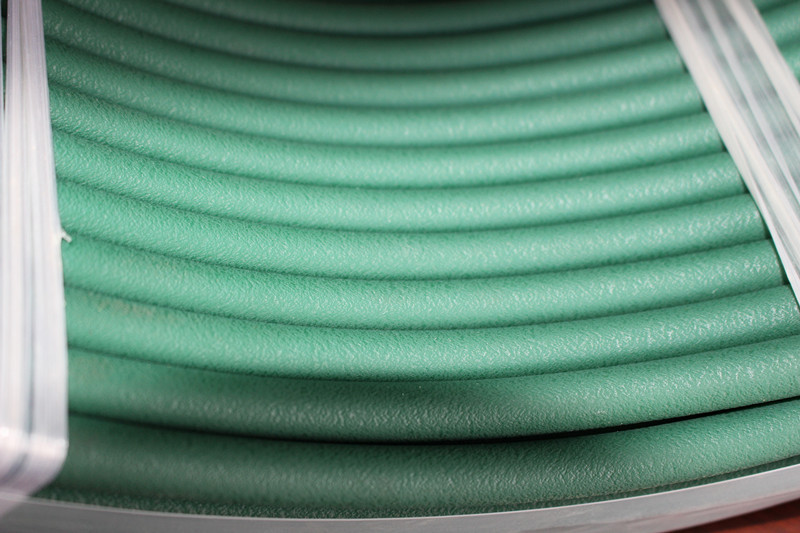

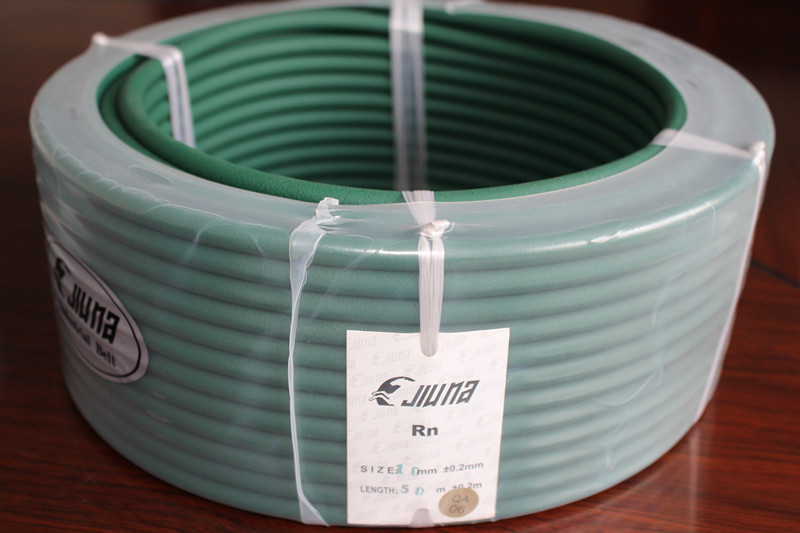

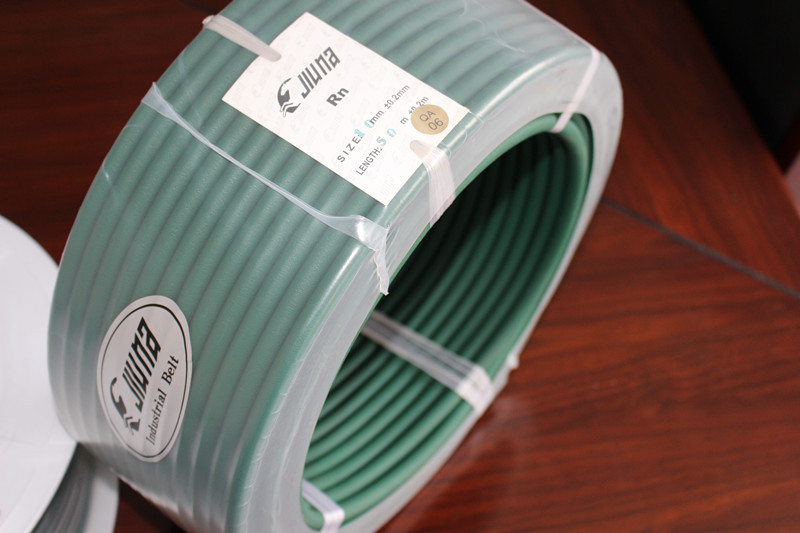

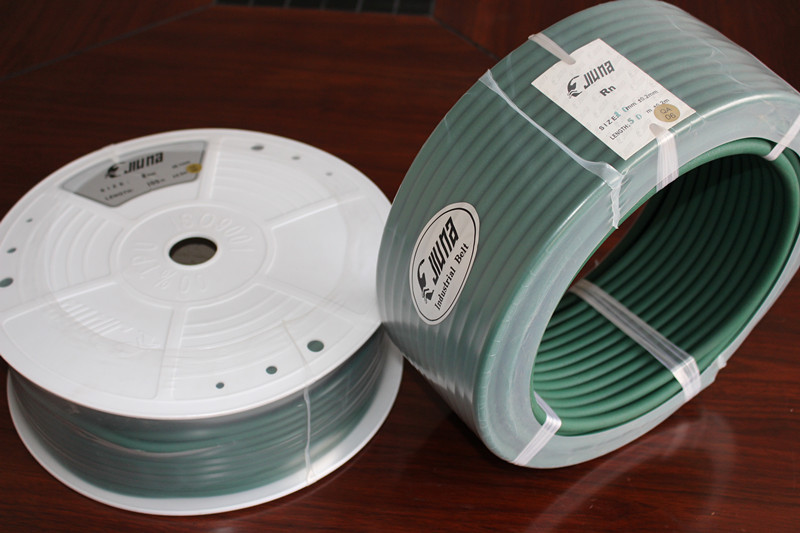

Rough Surface Polyurethane Round Belt Green Packing Machine
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. is from 2mm to 30mm
Products introduction:
Urethane round belts are elastomeric belts for power transmission application.
Having most metric sizes (2mm to 20mm) and standard O-ring sizes.
Polyether and Polyurethane round belts have best resilience of any elastic material.
Polyester product has good wear resistance, its wear resistance is 3.5 times of common plastic and rubber.




Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled
 ( m )

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30


Service commitment:
“Quality for keeping going ,Credit to win the world”
