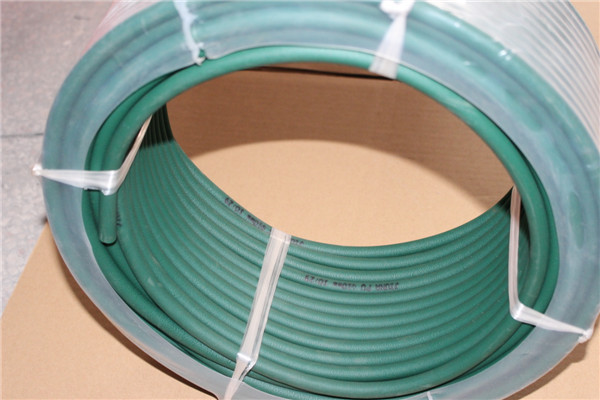

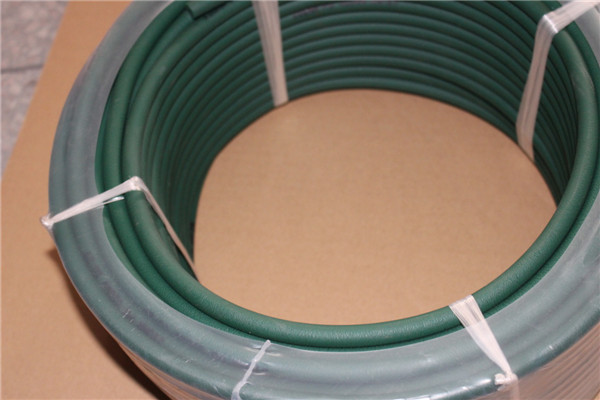

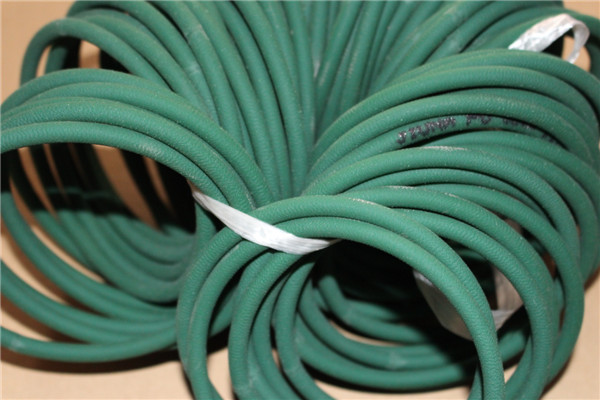

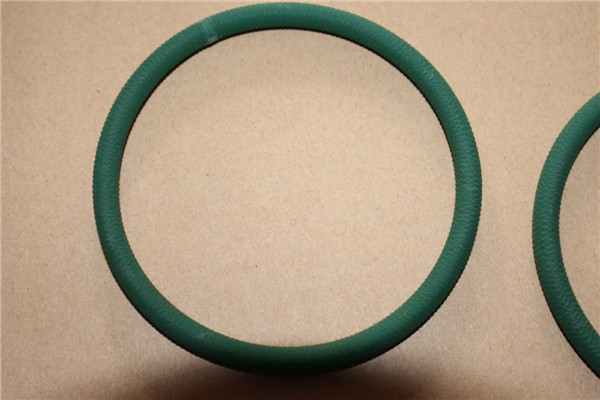

85A - 90A PU Round conveyor Belt Fuels Oxygen Glass Industry

85A - 90A PU Round conveyor Belt  Fuels Oxygen Glass Industry
85A - 90A PU Round conveyor Belt  Fuels Oxygen Glass Industry 85A - 90A PU Round conveyor Belt  Fuels Oxygen Glass Industry 85A - 90A PU Round conveyor Belt  Fuels Oxygen Glass Industry 85A - 90A PU Round conveyor Belt  Fuels Oxygen Glass Industry

Büyük resim :  85A - 90A PU Round conveyor Belt Fuels Oxygen Glass Industry

Ürün ayrıntıları:
Place of Origin: China
Marka adı: jiuna
Sertifika: ROHS
Model Number: Diameter 5mm~15mm
Ödeme & teslimat koşulları:
Minimum Order Quantity: 10rolls
Packaging Details: Inner packing is plastic film .outer packing is carton .
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
Detaylı ürün tanımı
tensile rate: 0.3kg-31.3kg color: green or as your require
stretching rate: 1.5%-3% material: PU
longth: 300m/roll 200m/roll 100m/roll hardness: 85A-90A
Vurgulamak:

PU yuvarlak kayış

,

PU haddelenmiş kemer

85A - 90A PU Round conveyor Belt  Fuels Oxygen Glass Industry

PU Cord Belt Application :

 (1)printing and packing machine

 (2)food & beverage processing

 (3)wood processing

 (4)paper processing

 (5) electronic

 (6)post service

 (7)tobacco transmission line

PU Cord Properties :

(1)Excellent abrasion resistance.

(2)Good resistance to fuel , oils and oxygen.

(3)Contains no plasticizer.

(4)Wide application temperature from -30℃~+80℃

transmission Round Belting Feature :

 (1)   With excellent bend resistant

 (2)   wear resistant

 (3)  easy connected

 (4)    t's not easy to be broken at low temperature

Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

DIA

(mm)

In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)

2 0.79 20 mm 1.5-3% 0.3 0.7 90 400
3 0.98 25  mm 1.5-3% 0.7 1.6 90 400
4 1.38 35  mm 1.5-3% 1.2 2.7 85 200
5 1.57 40  mm 1.5-3% 2.0 4.3 85 100
6 1.97 50  mm 1.5-3% 3.2 7.0 85 100
7 2.17 55  mm 1.5-3% 4.1 9.0 85 100
8 2.56 65  mm 1.5-3% 5.0 11.0 85 100
9 2.95 75  mm 1.5-3% 6.8 15.0 85 50
10 2.95 75  mm 1.5-3% 7.7 17.0 85 50
12 3.94 100 mm 1.5-3% 12.2 27.0 85 30
15 4.72 120 mm 1.5-3% 17.7 39.0 85 30
18 5.71 145 mm 1.5-3% 25.4 56.0 85 30
20 6.30 160 mm 1.5-3% 31.3 69.0 85

30
