Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| color: | green | material: | PU |
|---|---|---|---|
| longth: | 300m/roll 200m/roll 100m/roll | hardness: | 85A-90A |
| tensile rate: | 0.3kg-31.3kg | stretching rate: | 1.5%-3% |
| Vurgulamak: | PU haddelenmiş kemer,yeşil yuvarlak kemer |
||

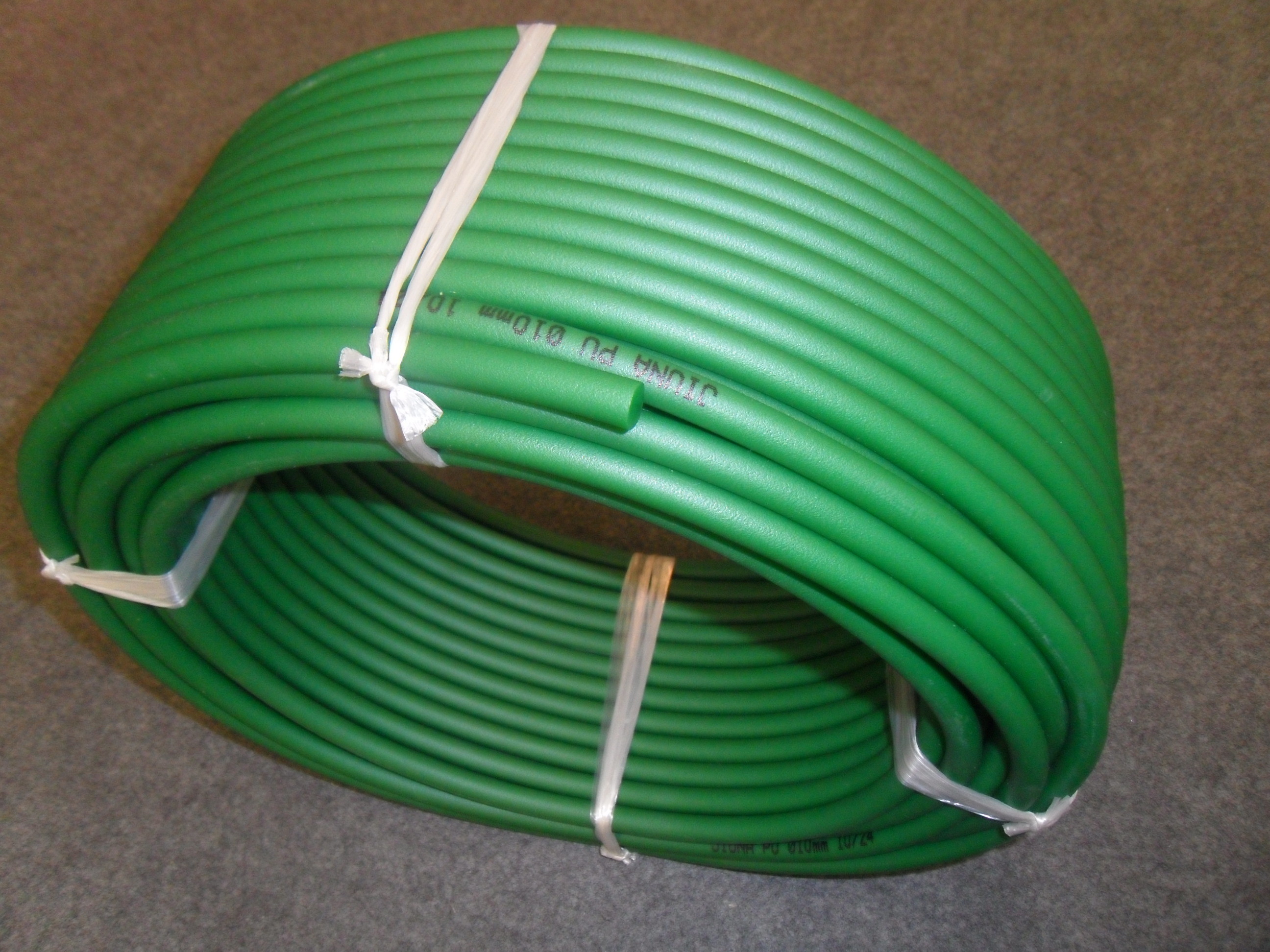

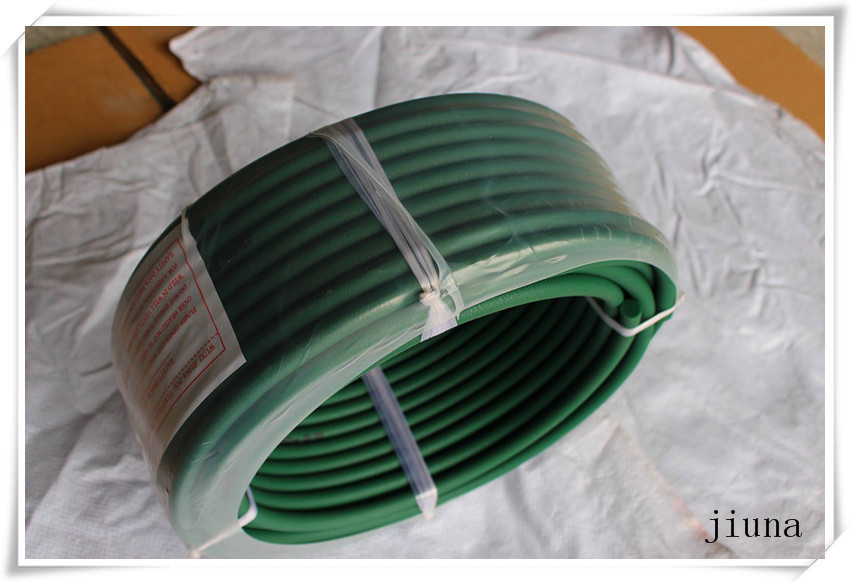

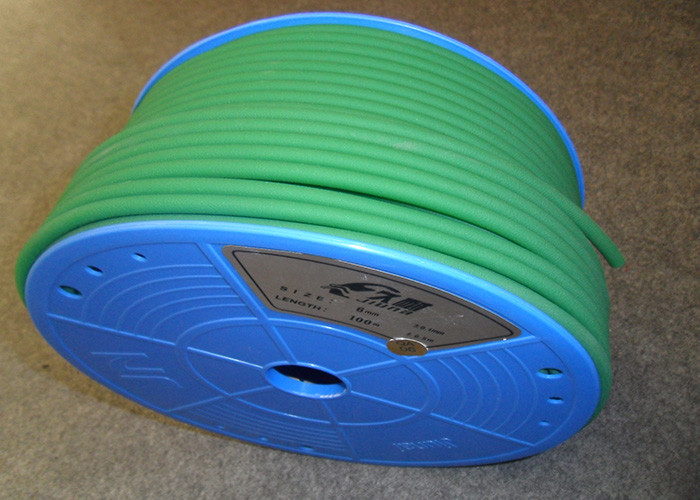

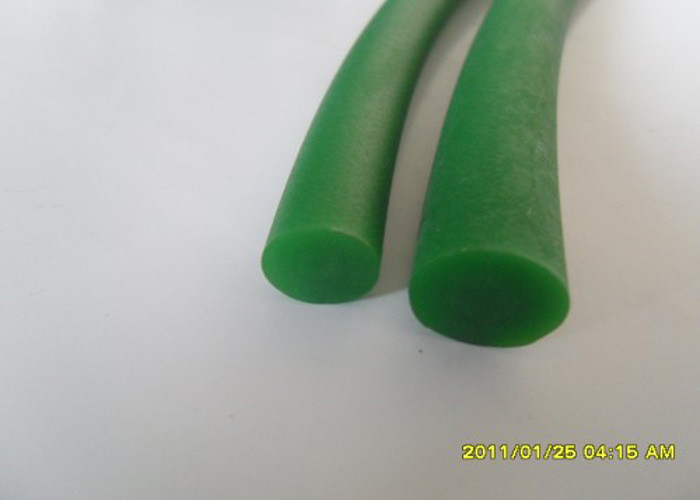

Tensile Strength Polyurethane Round Belt / Green PU Extruded Belt
Detailed Product Description:
PU Cord Belt Application :
Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.
PU Cord Properties :
-Excellent abrasion resistance.
-Good resistance to fuel , oils and oxygen.
-Contains no plasticizer.
-Wide application temperature from -30℃~+80℃
transmission Round Belting Feature :
Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set
| Items No. φ | least radius of gyration | stretch rate | Maximum tensile rate | Hardness | length of rolled | ||
|
DIA (mm) |
In | mm | Stretching rate | Kg | Lbs |
Hardness (A) |
Roll (m) |
| 2mm | 0.79 | 20mm | 1.5-3% | 0.3 | 0.7 | 90 | 400 |
| 3mm | 0.98 | 25mm | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
| 4mm | 1.38 | 35mm | 1.5-3% | 1.2 | 2.7 | 85 | 200 |
| 5mm | 1.57 | 40mm | 1.5-3% | 2.0 | 4.3 | 85 | 100 |
| 6mm | 1.97 | 50mm | 1.5-3% | 3.2 | 7.0 | 85 | 100 |
| 7mm | 2.17 | 55mm | 1.5-3% | 4.1 | 9.0 | 85 | 100 |
| 8mm | 2.56 | 65mm | 1.5-3% | 5.0 | 11.0 | 85 | 100 |
| 9mm | 2.95 | 75mm | 1.5-3% | 6.8 | 15.0 | 85 | 50 |
| 10mm | 2.95 | 75mm | 1.5-3% | 7.7 | 17.0 | 85 | 50 |
| 12mm | 3.94 | 100mm | 1.5-3% | 12.2 | 27.0 | 85 | 30 |
| 15mm | 4.72 | 120mm | 1.5-3% | 17.7 | 39.0 | 85 | 30 |
| 18mm | 5.71 | 140 | 1.5-3% | 25.4 | 56.0 | 85 | 30 |
| 20mm | 6.30 | 160mm | 1.5-3% | 31.3 | 69.0 | 85 |
30 |
