Reinforced Super Grip Belt Corrugated Belt with PVC , DIN standard
| Place of Origin | china |
|---|---|
| Marka adı | jiuna |
| Sertifika | ROHS |
| Model Number | A-13 B-17 C-22 |
| Minimum Order Quantity | 10 rolls |
| Packaging Details | Inner packing is plastic film .outer packing is carton |
| Delivery Time | Within 5 working days After receipt of your deposit |
| Payment Terms | T/T, 50% payment in advance ,50% balance before shipment |
| Supply Ability | 96,000,00 |
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Main function | Drive transmission | material | Polyurethane |
|---|---|---|---|
| Size range | Type A B C D | color | Red Green color. |
| hardness | 85A-90A | test | DIN standard |
| Main function | Drive transmission | Size range | Type A B C D |
| color | Red Green color. | ||
| Vurgulamak | yeşil yuvarlak kemer,PU haddelenmiş kemer |
||
Ürün Açıklaması

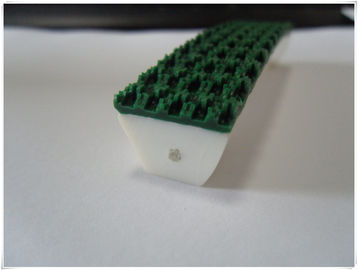

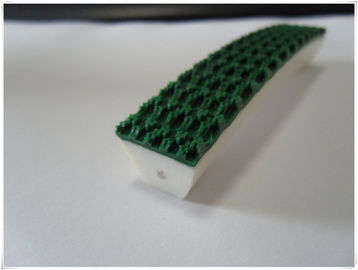

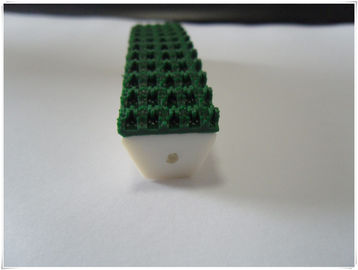

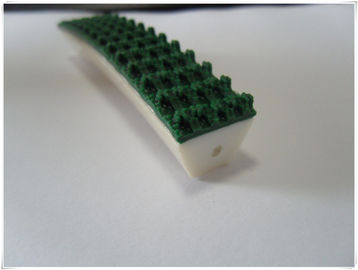

Reinforced Super Grip Belt Corrugated Belt with PVC , DIN standard
Features:
1.Outstanding abrasion resistance
2.High tensile and tear strength
3.Resistance to oils, fuels,and oxygen
4.Good weatherability and high impact resistance
5.Low compression set
Product Technical Parameters :
|
Specification |
X(mm) |
H(mm) |
Hardness (Shore A) |
M/rolls |
Reinforced |
|---|---|---|---|---|---|
|
A |
13mm |
8mm |
90 |
30 |
· |
|
B |
17mm |
11mm |
90 |
30 |
· |
|
C |
22mm |
14mm |
90 |
30 |
· |
|
D |
32mm |
19mm |
90 |
30 |
· |
|
M |
8mm |
4mm |
90 |
50 |
|
|
Z |
10mm |
5mm |
90 |
50 |
· |
Application:
Newspaper conveying, Packing machines, Ceramic and stoneware processing plants, Floor and roof tiles conveying, Wood Working machineries, Textile machines, Paper industry machines, Food grading machines, other food processing machines.
