34-50 MPA Ceramic Conveying Polyurethane Round Belt 30 Meter / Rolls

Çin Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikalar
Çin Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikalar
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

Ben sohbet şimdi

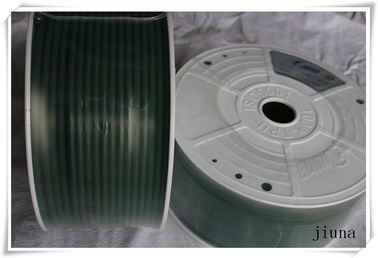

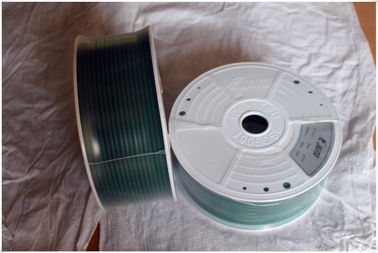

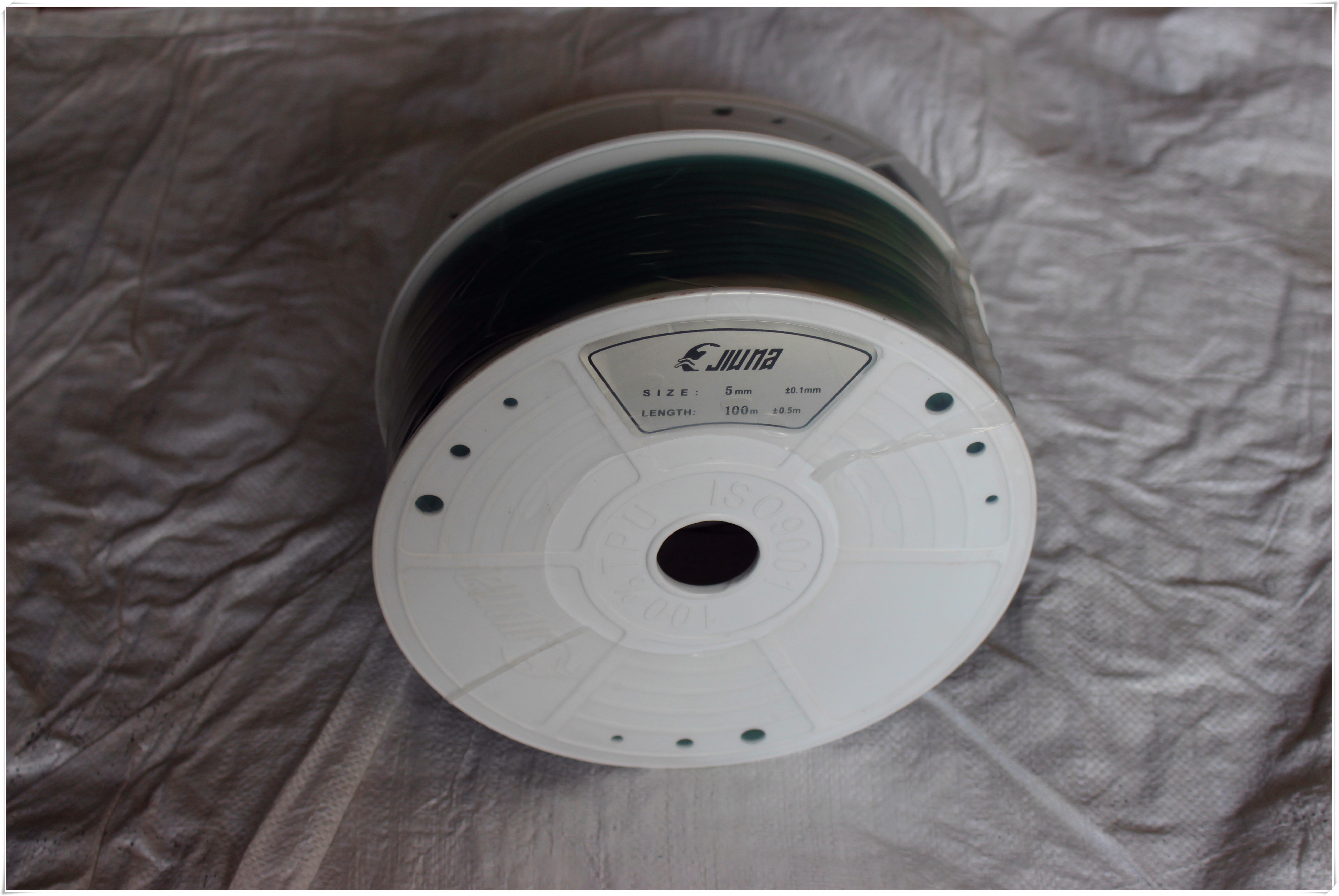

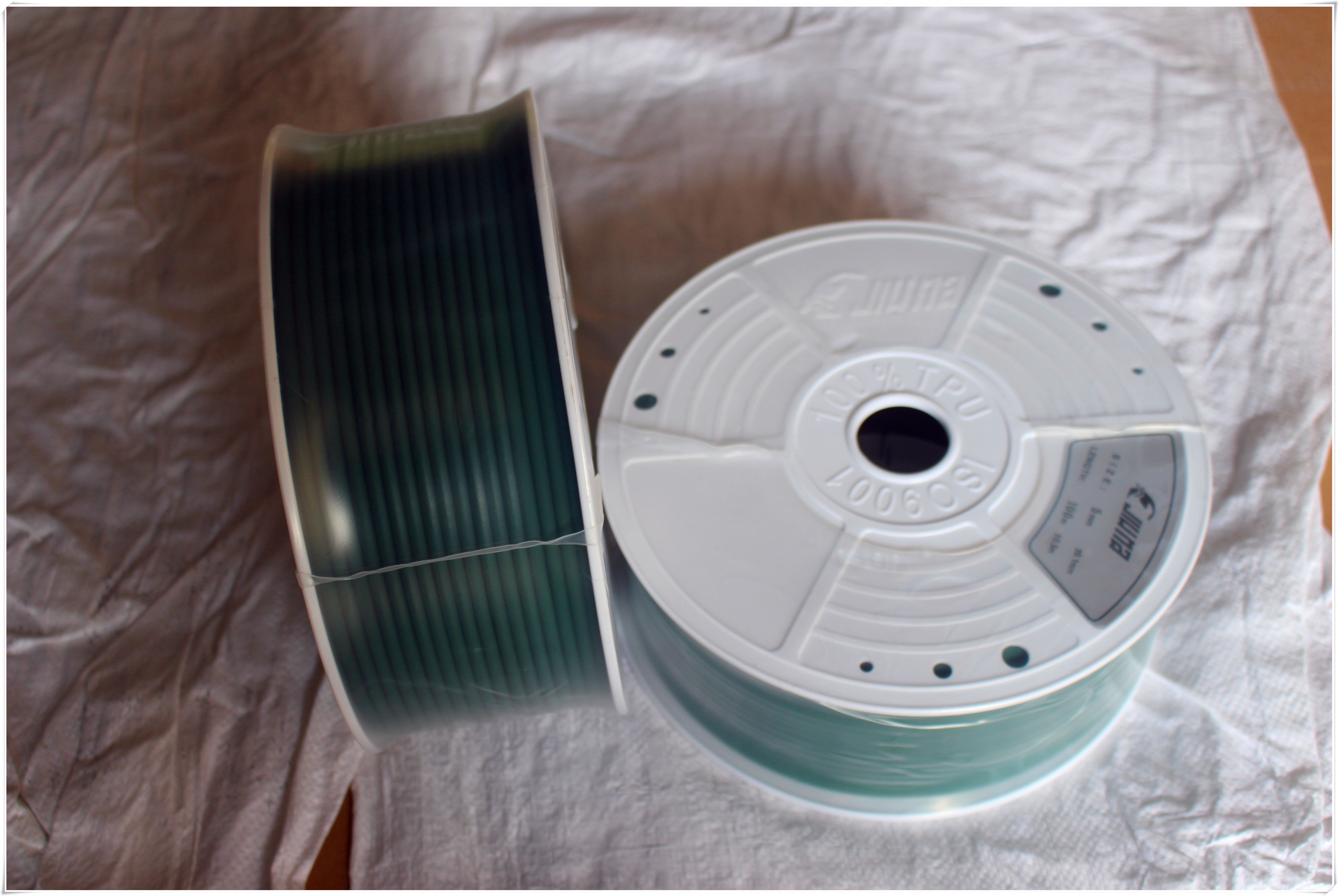

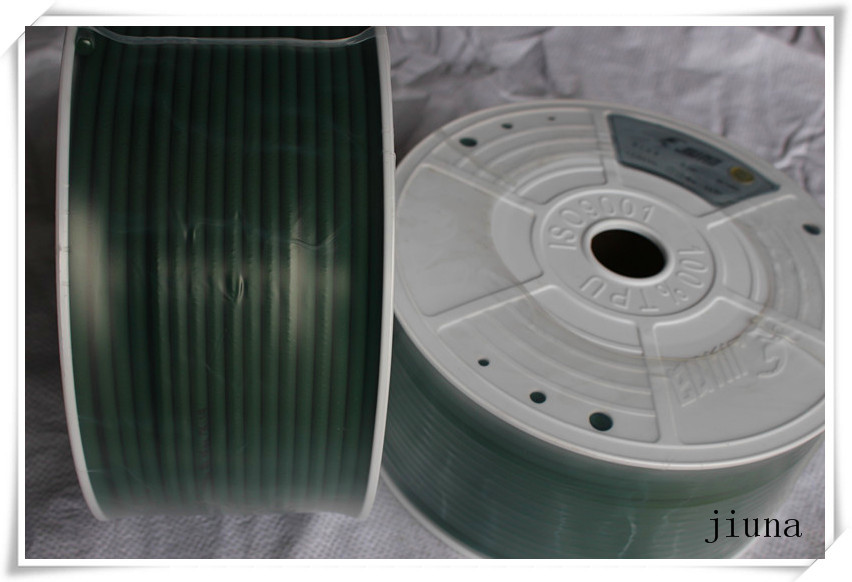

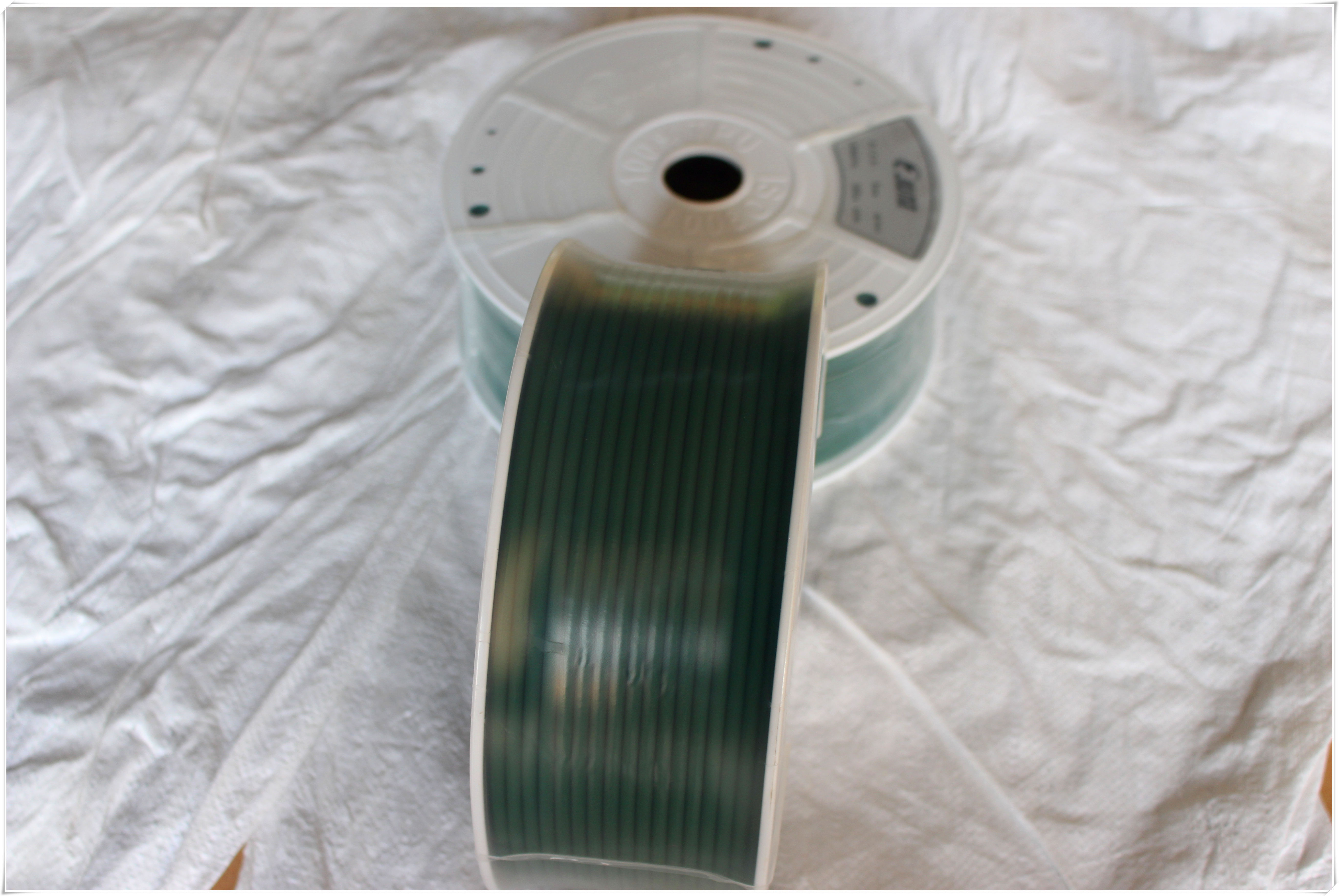

34-50 MPA Ceramic Conveying Polyurethane Round Belt 30 Meter / Rolls

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Büyük resim :  34-50 MPA Ceramic Conveying Polyurethane Round Belt 30 Meter / Rolls

Ürün ayrıntıları:
Place of Origin: China
Marka adı: Jiuna
Sertifika: ROHS
Model Number: Diameter 20 mm
Ödeme & teslimat koşulları:
Minimum Order Quantity: 10rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment
Supply Ability: 96.000 meters per Month
Detaylı ürün tanımı
Length: 30 meter /rolls Hardness: 85 shore A ~90 shore A
color: green and orange material: PU
type: PU round belt tensioning: 1.5%-3%
tolerance: ±0.2-0.5mm tensile: 34-50mpa
Vurgulamak:

pu yuvarlak kemer

,

yeşil yuvarlak kemer

,

Poliüretan Yuvarlak Kemer 30 Metre / Rulo



34-50 MPA Ceramic Conveying Polyurethane Round Belt 30 Meter / Rolls


Our company specializing in the production of PU round belt,V belt,non-slip belt,wire clip,clip wire core,PU guide, stop,package edge,skirt,scraping gum,rubber roller,wheel and all kinds of non-standard special polyurethane products.TPU proudcts characteristic and main performance are: easy adhesion,good abrasion resistance,tear resistance,bending strength,tensile strength and breaking elongation,heat-resistant moderate (-30 ℃~80℃ ) ,hardness shaw (70a~98a). Smooth round belt, V belt surface finish is good, bright color with rough surface. Uniform praticles,comfortable feel.cpu pouring product characteristics and main performance are: wear-resisting.oil,acid and alkali resistance,solvent resistance,ozone resistance,aging resistance,environmental protection,non-toxic,the main products are rubber roller plastic bags,plastic core package iron roller,printing and dyeing,etc.,and can undertake various non-standard parts processing,customized non-standard products can be according to the drawing,plastic,iron core production in a body.



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30

34-50 MPA Ceramic Conveying Polyurethane Round Belt 30 Meter / Rolls 0
