PU Polyurethane Round Belt Good Resistance , Green Round Belt

Çin Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikalar
Çin Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikalar
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

Ben sohbet şimdi

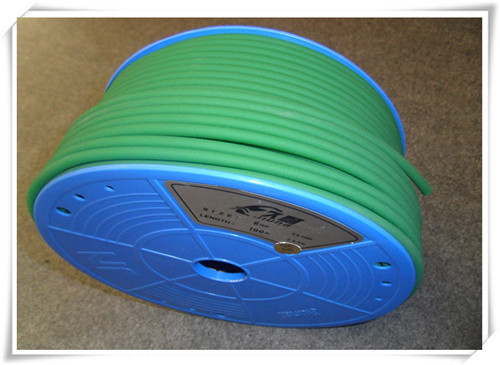

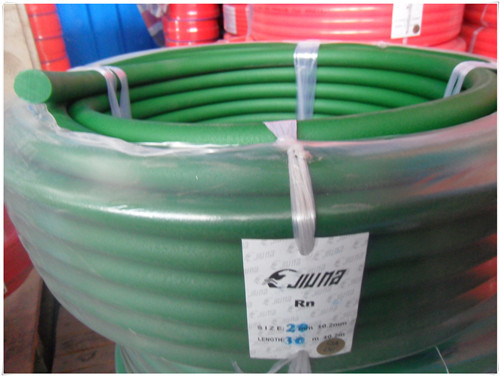

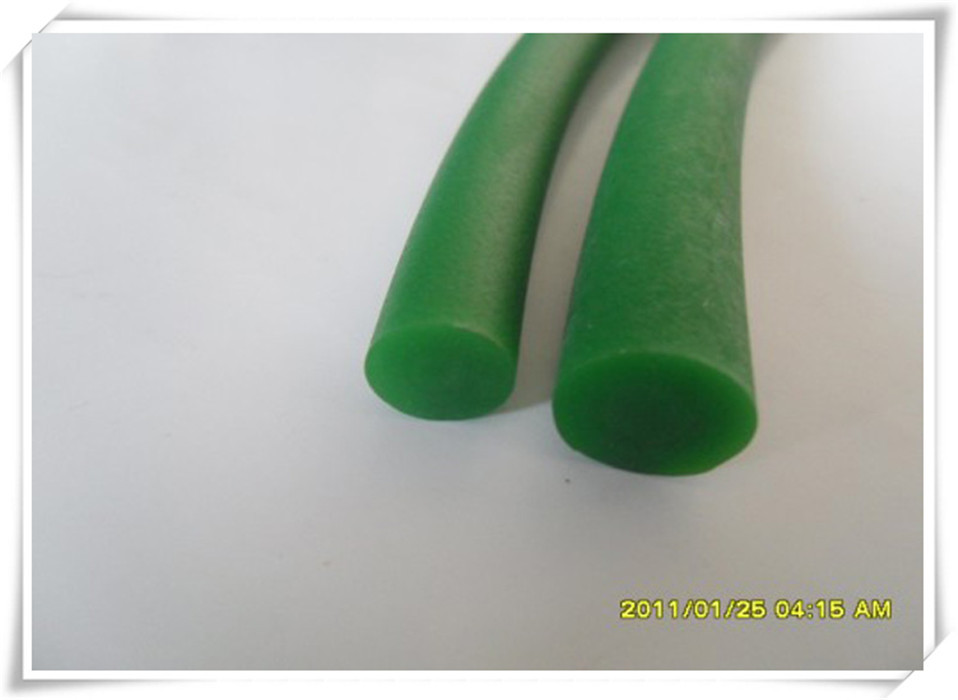

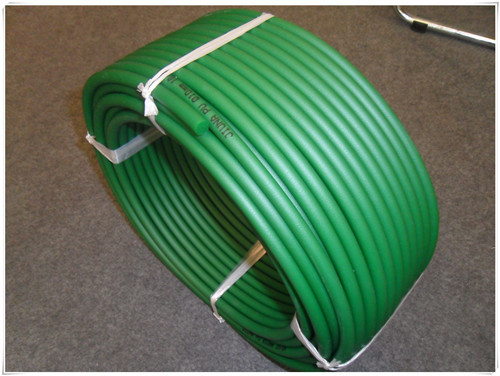

PU Polyurethane Round Belt Good Resistance , Green Round Belt

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Büyük resim :  PU Polyurethane Round Belt Good Resistance , Green Round Belt

Ürün ayrıntıları:
Place of Origin: China
Marka adı: jiuna
Sertifika: ROHS
Model Number: Diameter 5mm~15mm
Ödeme & teslimat koşulları:
Minimum Order Quantity: 10rolls
Packaging Details: Inner packing is plastic film .outer packing is carton .
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
Detaylı ürün tanımı
color: green material: PU
longth: 300m/roll 200m/roll 100m/roll hardness: 85A-90A
tensile rate: 0.3kg-31.3kg stretching rate: 1.5%-3%
Vurgulamak:

PU yuvarlak kayış

,

PU haddelenmiş kemer

PU Polyurethane Round Belt Good Resistance , Green Round Belt

Detailed Product Description:

PU Cord Belt Application :

Application:

1.Newspaper conveying,
2.Packing machines,
3.Ceramic and stoneware processing plants,
4.Floor and roof tiles conveying,
5.Wood Working machineries,
6.Textile machines,
7.Paper industry machines,
8.Food grading machines, other food processing machines.

PU Cord Properties :

1.Excellent abrasion resistance.

2.Good resistance to fuel , oils and oxygen.

3.Contains no plasticizer.

4.Wide application temperature from -30℃~+80℃

transmission Round Belting Feature :

1.Outstanding abrasion resistance
2.High tensile and tear strength
3.Resistance to oils, fuels,and oxygen
4.Good weatherability and high impact resistance
5.Low compression set



Wuxi jiunai  polyurethane products co.,LTD is located in wuxi city shitang bay mountain luoshe town industrial park, near to 312 national road, trafifc is very convenient . Company has the international leading level of polyurethane products production  line, the introduction of international  advanced technology and testing, testing equipment. In the production scale ,production process, techncal strength in the same industry leading position . Ls a research and development, the production of polyurethane series products of leading domestic, top professional manufacturers,with strong teachnology research and development and production capacity.



Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

DIA

(mm)

In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)

2mm 0.79 20mm 1.5-3% 0.3 0.7 90 400
3mm 0.98 25mm 1.5-3% 0.7 1.6 90 400
4mm 1.38 35mm 1.5-3% 1.2 2.7 85 200
5mm 1.57 40mm 1.5-3% 2.0 4.3 85 100
6mm 1.97 50mm 1.5-3% 3.2 7.0 85 100
7mm 2.17 55mm 1.5-3% 4.1 9.0 85 100
8mm 2.56 65mm 1.5-3% 5.0 11.0 85 100
9mm 2.95 75mm 1.5-3% 6.8 15.0 85 50
10mm 2.95 75mm 1.5-3% 7.7 17.0 85 50
12mm 3.94 100mm 1.5-3% 12.2 27.0 85 30
15mm 4.72 120mm 1.5-3% 17.7 39.0 85 30
18mm 5.71 140 1.5-3% 25.4 56.0 85 30
20mm 6.30 160mm 1.5-3% 31.3 69.0 85

30






PU Polyurethane Round Belt Good Resistance , Green Round Belt 0
