Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| Sertlik: | 85 kıyı A | Renk: | Koyu yeşil |
|---|---|---|---|
| Material: | PU | uzunluk: | 30m/rulo |
| germe ağ: | %1,5-3 | tip: | PU yuvarlak kemer |
| Vurgulamak: | pu yuvarlak kemer,yeşil yuvarlak kemer,85 kıyı Yeşil yuvarlak poliüretan kemer |
||
Flexure resistant 2mm - 20mm 100% pu round belt For packing
PU Cord Belt Application :
1. Widely used in textile
2. printing and packing machine
3. food & beverage processing
4. wood processing
5. paper processing
6. electronic
7. post service
8. tobacco transmission line
9. Wall floor tile conveying industrial line
10. Ceramic industry line or polishing line

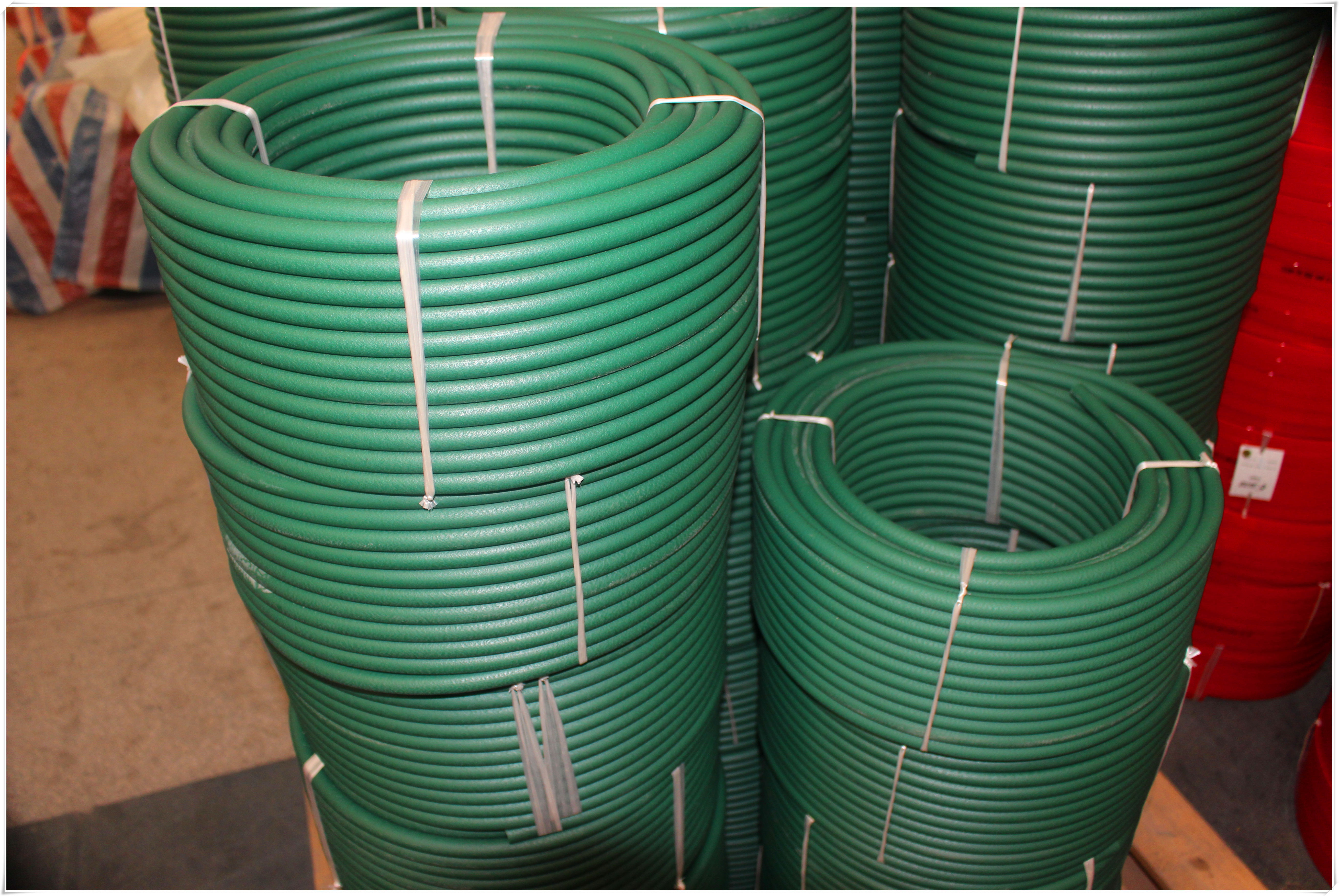

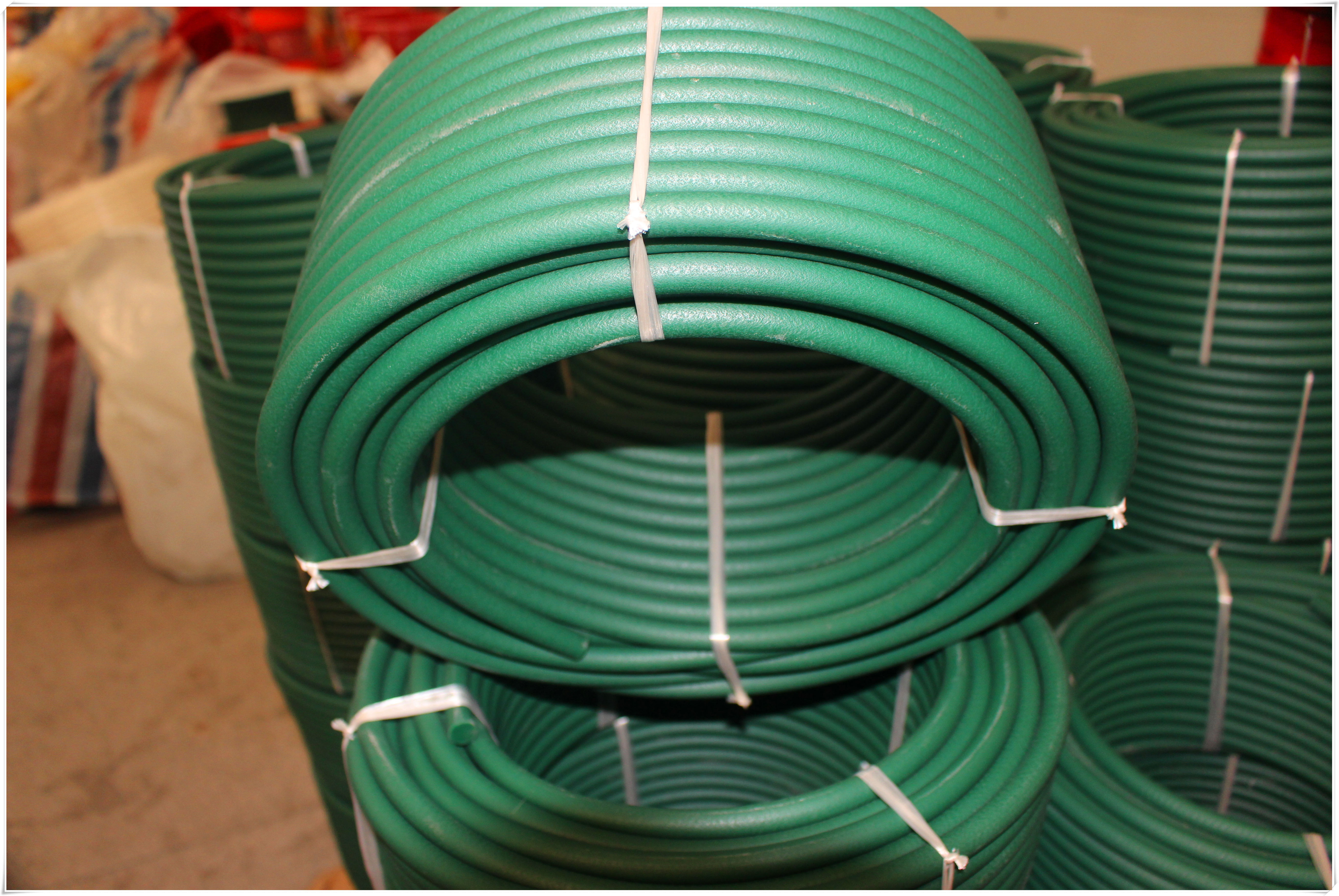

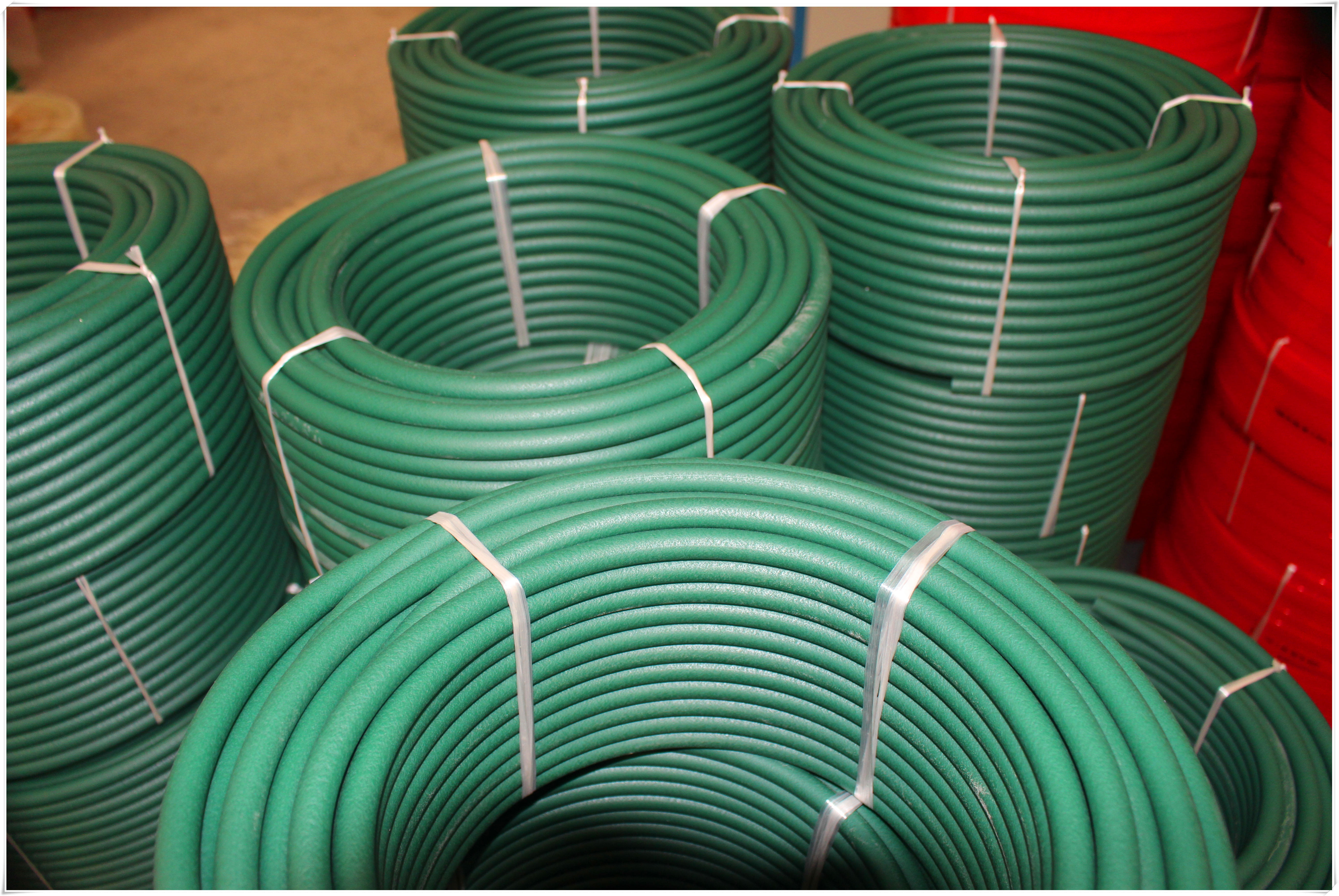

PU Round Belt(smooth/rough)
(1)Thermoplastic polyurethane material, easy to be melted jointed,100% pure polyurethane
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35℃ - 80℃
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics.
Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and
other industries, especially in the ceramic industry, widely used in the facilities line the glaze,
polishing lines, and transmission line.

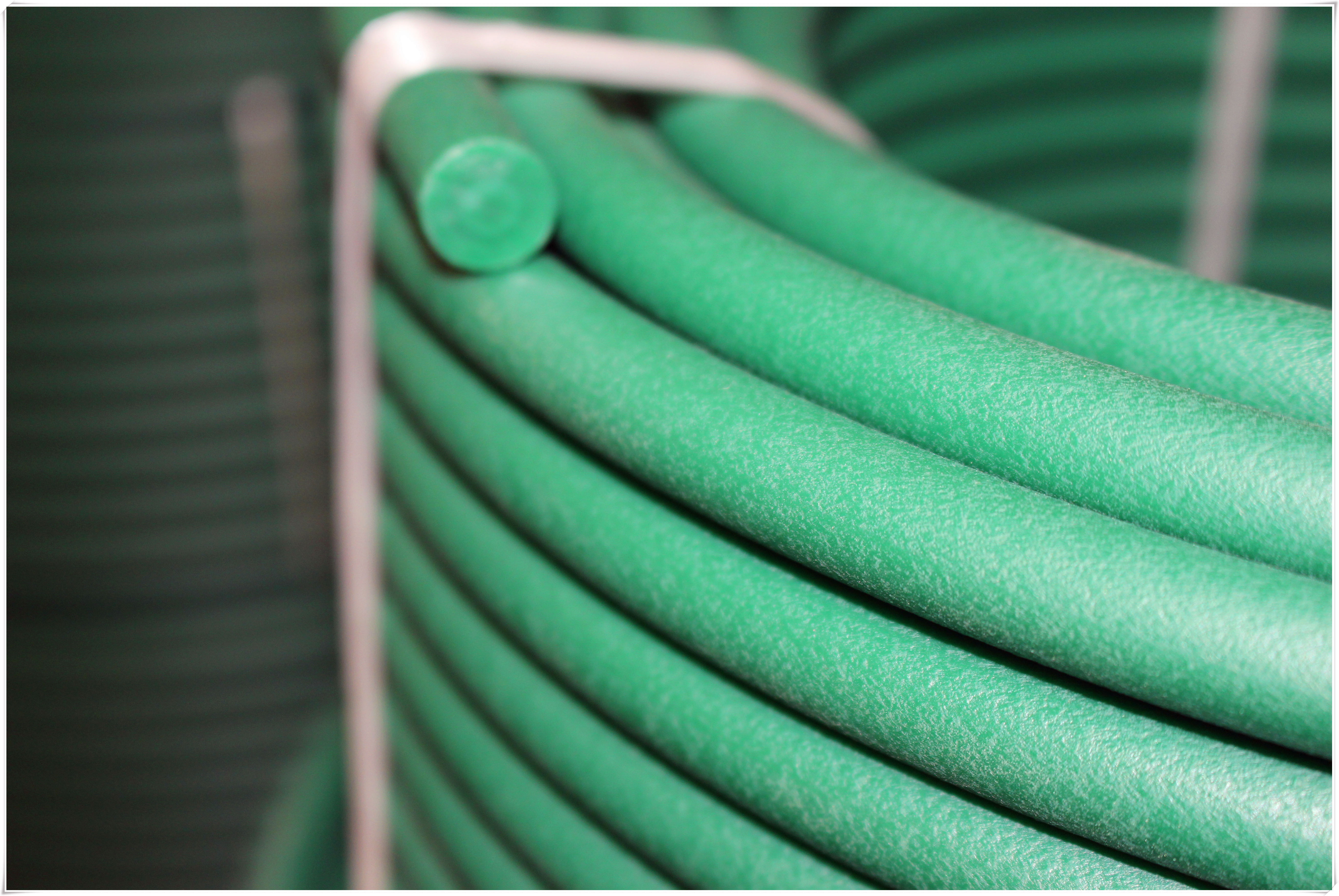

(6) Dia. is from 2mm to 30mm. Smooth Belt with good surface finish; Rough belt with even surface roughness.
They are used widely.
|
Items No. φ |
least radius of gyration |
stretch rate |
Maximum tensile rate |
Hardness |
length of rolled |
||
|
DIA (mm) |
In |
mm |
Stretching rate |
Kg |
Lbs |
Hardness (A) |
Roll (m) |
|
2mm |
0.79 |
20 |
1.5-3% |
0.3 |
0.7 |
90 |
400 |
|
3mm |
0.98 |
25 |
1.5-3% |
0.7 |
1.6 |
90 |
400 |
|
4mm |
1.38 |
35 |
1.5-3% |
1.2 |
2.7 |
85 |
200 |
|
5mm |
1.57 |
40 |
1.5-3% |
2.0 |
4.3 |
85 |
100 |
|
6mm |
1.97 |
50 |
1.5-3% |
3.2 |
7.0 |
85 |
100 |
|
7mm |
2.17 |
55 |
1.5-3% |
4.1 |
9.0 |
85 |
100 |
|
8mm |
2.56 |
65 |
1.5-3% |
5.0 |
11.0 |
85 |
100 |
|
9mm |
2.95 |
75 |
1.5-3% |
6.8 |
15.0 |
85 |
50 |
|
10mm |
2.95 |
75 |
1.5-3% |
7.7 |
17.0 |
85 |
50 |
|
12mm |
3.94 |
100 |
1.5-3% |
12.2 |
27.0 |
85 |
30 |
|
15mm |
4.72 |
120 |
1.5-3% |
17.7 |
39.0 |
85 |
30 |
|
18mm |
5.71 |
145 |
1.5-3% |
25.4 |
56.0 |
85 |
30 |
|
20mm |
6.30 |
160 |
1.5-3% |
31.3 |
69.0 |
85 |
30 |
