Wuxi Jiunai Polyurethane Products Co., Ltd
Ana sayfa ÜrünlerPoliüretan Yuvarlak Kemer

Green 85A CVT Transmission Belt Polyurethane Widely Textile

Çin Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikalar
Çin Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikalar
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

Ben sohbet şimdi

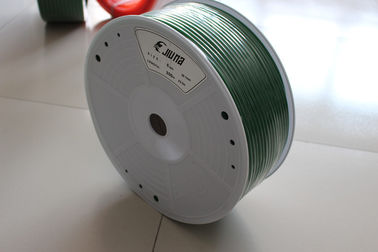

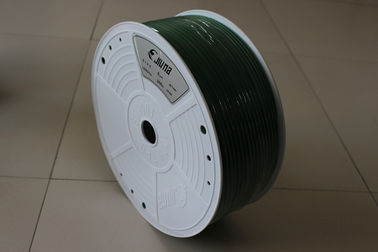

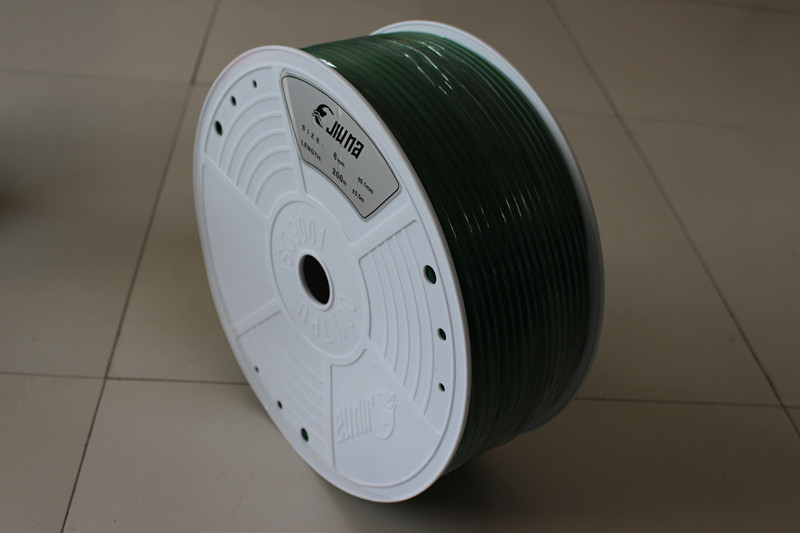

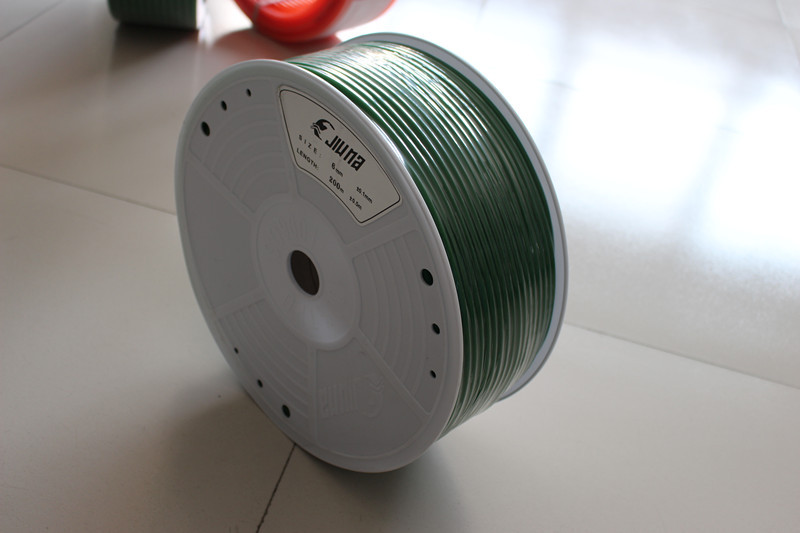

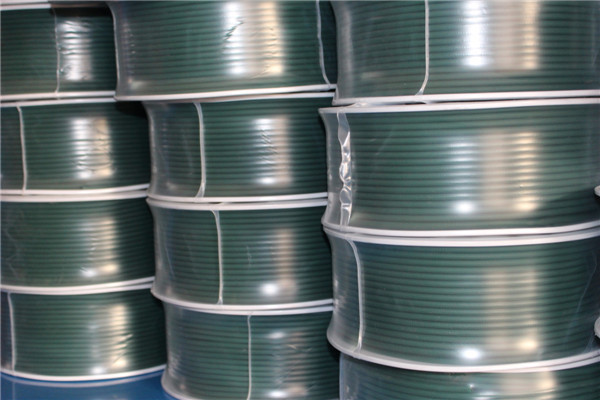

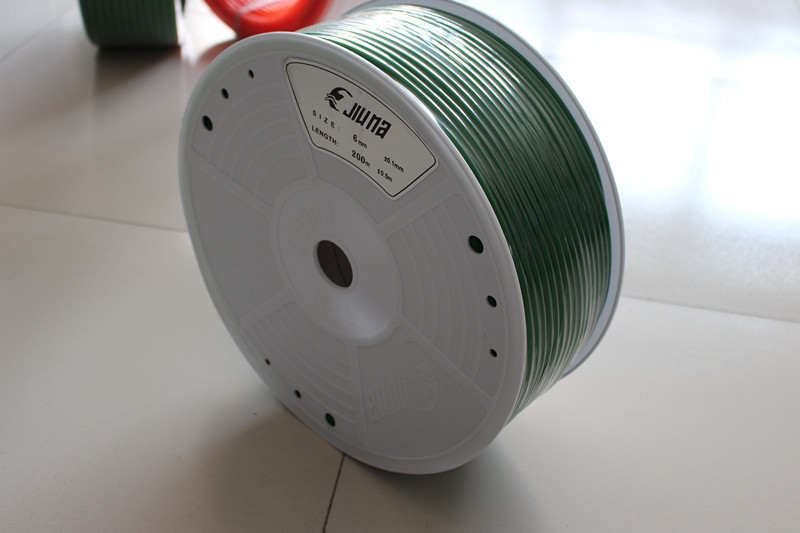

Green 85A CVT Transmission Belt Polyurethane Widely Textile

Green 85A CVT Transmission Belt Polyurethane Widely Textile
Green 85A CVT Transmission Belt Polyurethane Widely Textile Green 85A CVT Transmission Belt Polyurethane Widely Textile Green 85A CVT Transmission Belt Polyurethane Widely Textile Green 85A CVT Transmission Belt Polyurethane Widely Textile

Büyük resim :  Green 85A CVT Transmission Belt Polyurethane Widely Textile

Ürün ayrıntıları:
Place of Origin: wuxi city of china
Marka adı: jiuna
Sertifika: ROHS
Model Number: dia 6 mm
Ödeme & teslimat koşulları:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 7 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
Detaylı ürün tanımı
hardness: 85A-90A stretching rate: 1.5-3%
material: PU color: Green
length: 200 m/roll 100m/roll Type: PU round belt
Diameter: 6mm
Vurgulamak:

PU haddelenmiş kemer

,

yeşil yuvarlak kemer

Green 85A CVT Transmission Belt Polyurethane Widely Textile

Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30



1.24 hours technical support by email

2.Professional After-sales service

3. ISO9001:2000 and TS16949 certificated.

4. OEM available.

5. More than ten years of sales and manufacture experience

6.100% test for air pressure and inspection for product appearance before shipment.

7. Long lifespan, competitive price.

8. Good payment term.

9. Fast delivery.

10.Thread Standard: BSPP, BSPT, NPT, METRIC etc. Our products are exported to more than 30 countries in the whole world.

11. Our products are showed at international fair, such as Germany, Italy, America, Brazil, Dubai, Russia, Shanghai China fair etc each year.

12. Location advantage: Nearby Ningbo port, the second largest port in China, convenient transportation and low cost, and close to Shanghai, convenient for customers to visit our factory



Details:

(1)Thermoplastic polyurethane material, easy to be melted jointed

(2)Reinforced by Polyester Cord or Steel Cord

(3)Temperature range -35°C - 80°C

(4)Shore A hardness range 80A - 98A

(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.

(6)Round Belt:

Round Belt Dia. is from 2mm to 30mm

Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.

PU Round belt with reinforcement

Green 85A CVT Transmission Belt Polyurethane Widely Textile 0Green 85A CVT Transmission Belt Polyurethane Widely Textile 1Green 85A CVT Transmission Belt Polyurethane Widely Textile 2
