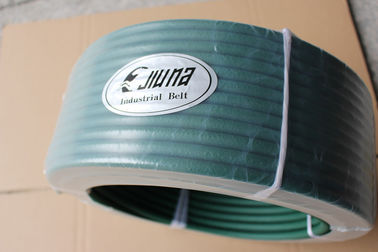

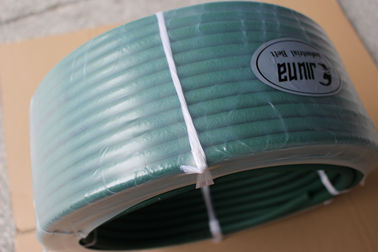

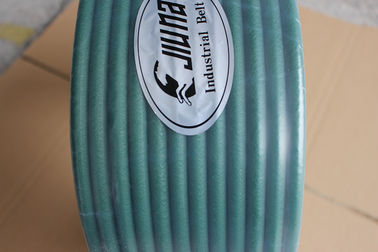

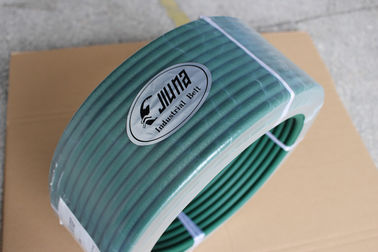

0.3KG - 31.3KG Ransmission Machine PU Extruded Belt PU round belt Hardness 85 A suface rough

0.3KG - 31.3KG Ransmission Machine PU Extruded Belt  PU round belt Hardness 85 A suface rough
0.3KG - 31.3KG Ransmission Machine PU Extruded Belt  PU round belt Hardness 85 A suface rough 0.3KG - 31.3KG Ransmission Machine PU Extruded Belt  PU round belt Hardness 85 A suface rough 0.3KG - 31.3KG Ransmission Machine PU Extruded Belt  PU round belt Hardness 85 A suface rough 0.3KG - 31.3KG Ransmission Machine PU Extruded Belt  PU round belt Hardness 85 A suface rough

Büyük resim :  0.3KG - 31.3KG Ransmission Machine PU Extruded Belt PU round belt Hardness 85 A suface rough

Ürün ayrıntıları:
Place of Origin: china
Marka adı: jiuna
Sertifika: ROHS
Model Number: dia 3mm-18mm
Ödeme & teslimat koşulları:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 7 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
Detaylı ürün tanımı
hardness: 85A-90A stretching rate: 1.5-3%
material: PU color: green
tensile rate: 0.3-31.3KG length: 30m/roll
Vurgulamak:

PU yuvarlak kayış

,

yeşil yuvarlak kemer

Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.


Production Line Profile
our factory is located in wuxi city shitang bay mountain luoshe town industrial park,
near to 312 national road, trafifc is very convenient .
Company has the international leading level of polyurethane products production  line,
the introduction of international  advanced technology and testing, testing equipment.
we already have 2,000 square meters of factory buildings,  3  advanced production lines .
We have workers about 80 people, each machine operator has more than three years of
work experience is. Factory production capacity of 96.000 meters per Month. According to
your drawing production, or the production according to your samples you need.
After the production of the product, there is a special quality manager, product testing.
To ensure that the pass rate products.

Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30
